| Dansk DVB-T2 oversigt Gældende fra 2 Juni 2020 For dejaljer se Transitionsplan_r03_0.pdf Dette er en privat interesseside, opdateringer modtages gerne HER Den officielle side for digital tv i Danmark findes HER |
Hovedstaden
| Sendemast | MUX1 | MUX2 | MUX3 | MUX4 | MUX5 | Sender info | Sendeeffekt | Lokation - Billede | |
| Hove | K40 626 | K33 570 | K23 490 | K42 642 | K31 554 | 311m - Kote 10 | 50kW Vandret |
 |
|
| Gladsaxe | " | " | " | " | " | 210m - Kote 40 | 10kW Vandret |
|
|
| Lynetten | " | " | " | " | " | 95m - Kote 1 | 2kW Lodret |
|
|
| Helsingør | " | " | " | " | " | 88m - Kote 15 | 200W Lodret |
|
|
| Landskrona | " | " | " | " | " | 63m - Kote 2 | 800W Vandret |
|
|
| Borups Alle | " | " | " | " | " | 97m - Kote 7 | 200W Lodret |
|
| Sendemast | KBH-1 | KBH-2 | Sender info | Sendeeffekt | Lokation - Billede | ||||
| Borups Alle | K35 586 | K39 618 | 97m - Kote 7 | 4kW Lodret |
|
Sjælland
| Sendemast | MUX1 | MUX2 | MUX3 | MUX4 | MUX5 | Sender info | Sendeeffekt | Lokation - Billede | |

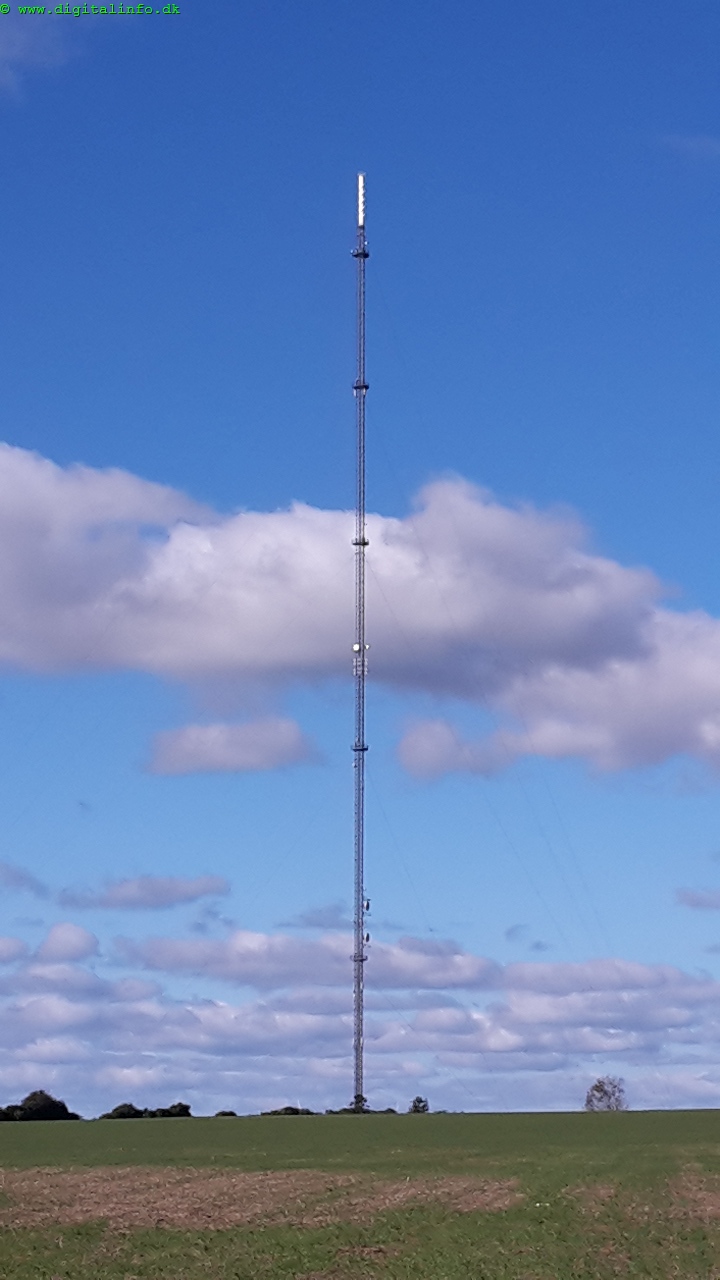

| Jyderup | K34 578 | K48 690 | K23 490 | K42 642 | K31 554 | 311m - Kote 11 | 50kW Vandret |
 |
|

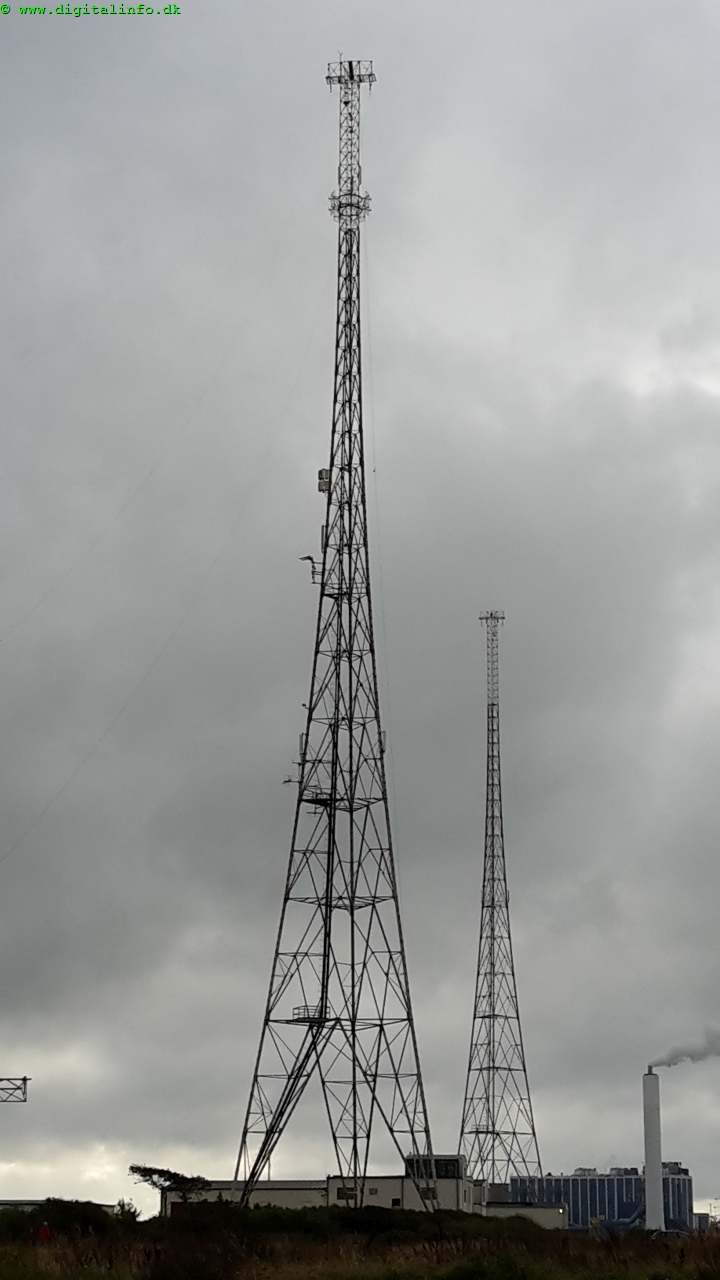

| Kalundborg | " | " | " | " | " | 74m - Kote 1 | 100W Lodret |
 |
|
| Skamlebæk | " | " | " | " | " | 78m - Kote 73 | 30W Lodret |
 |
|

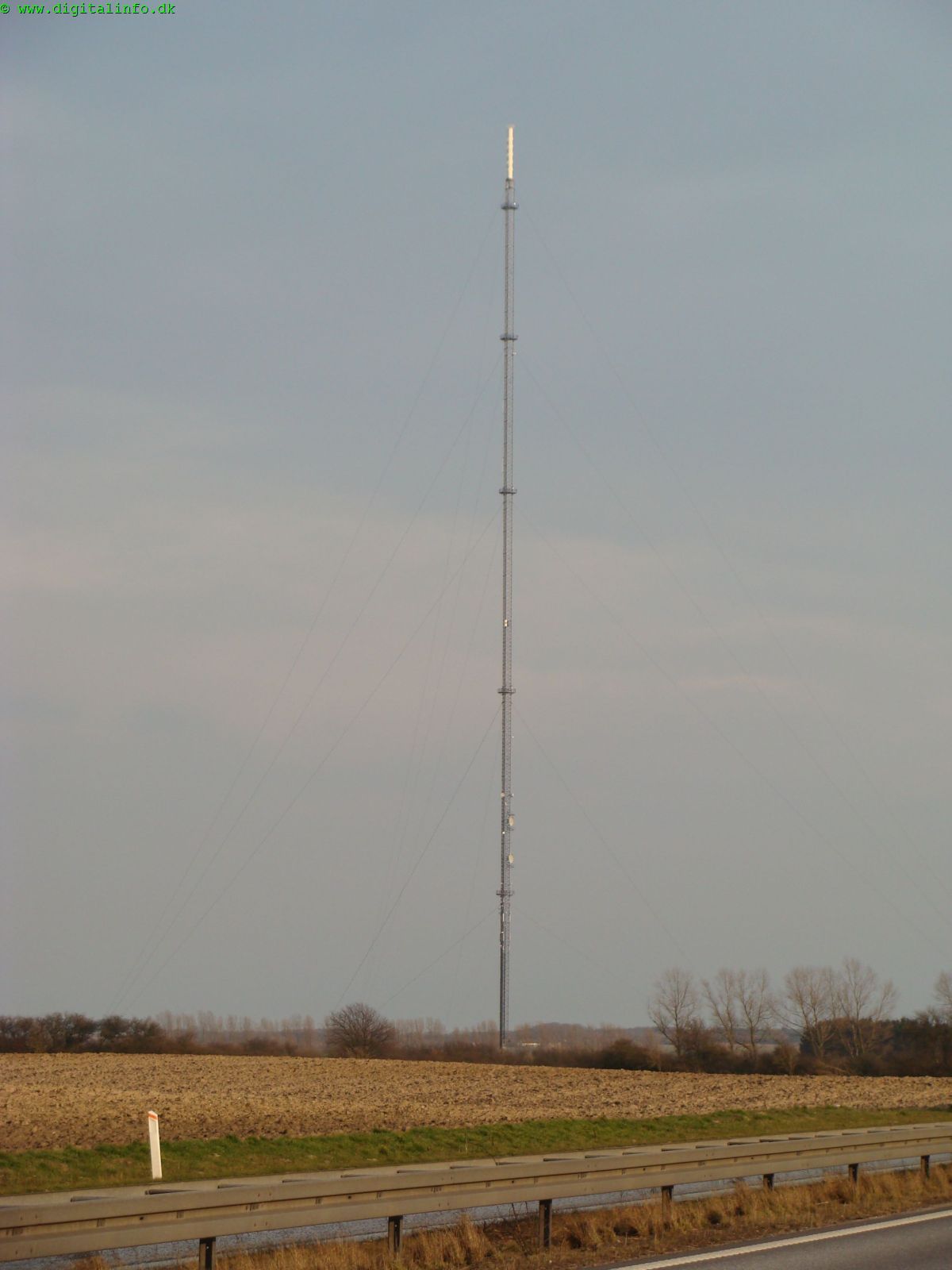

| Vordingborg | " | " | K38 610 | " | " | 311m - Kote 54 | 50kW Vandret |
 |
|

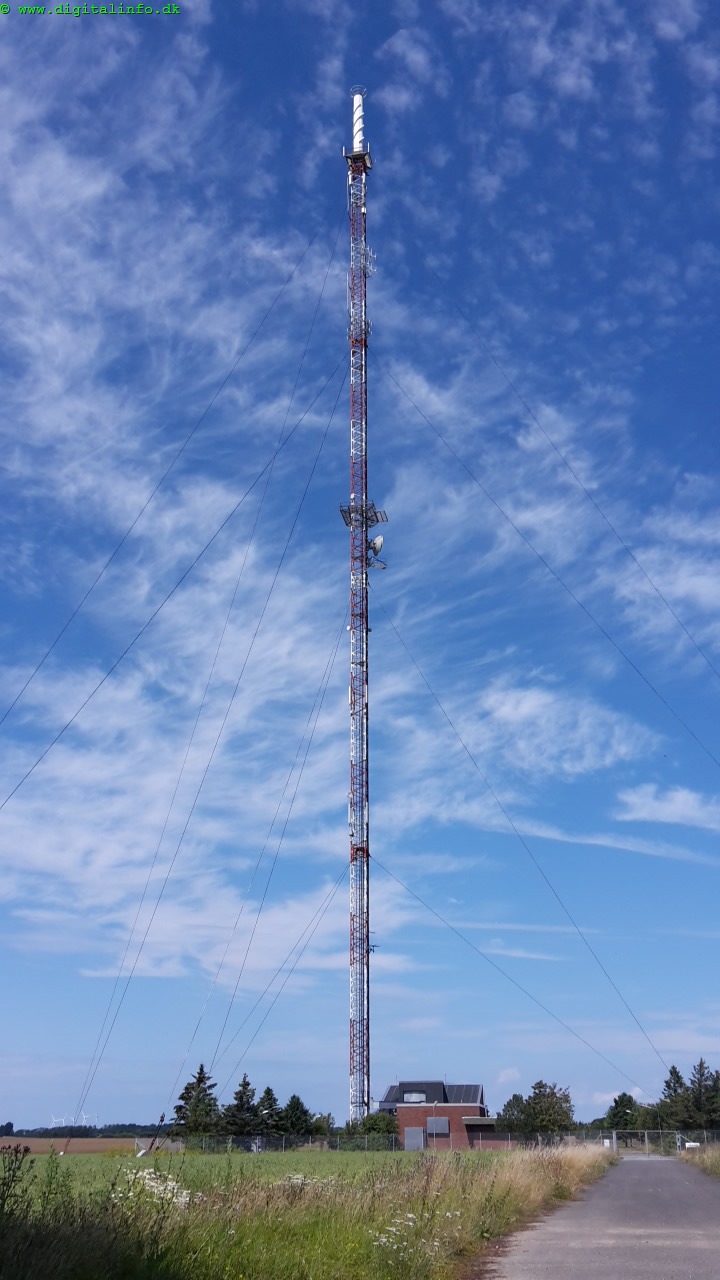

| Nakskov | " | " | " | " | " | 159m - Kote 8 | 10kW Vandret |
 |
Bornholm
| Sendemast | MUX1 | MUX2 | MUX3 | MUX4 | MUX5 | Sender info | Sendeeffekt | Lokation - Billede | |

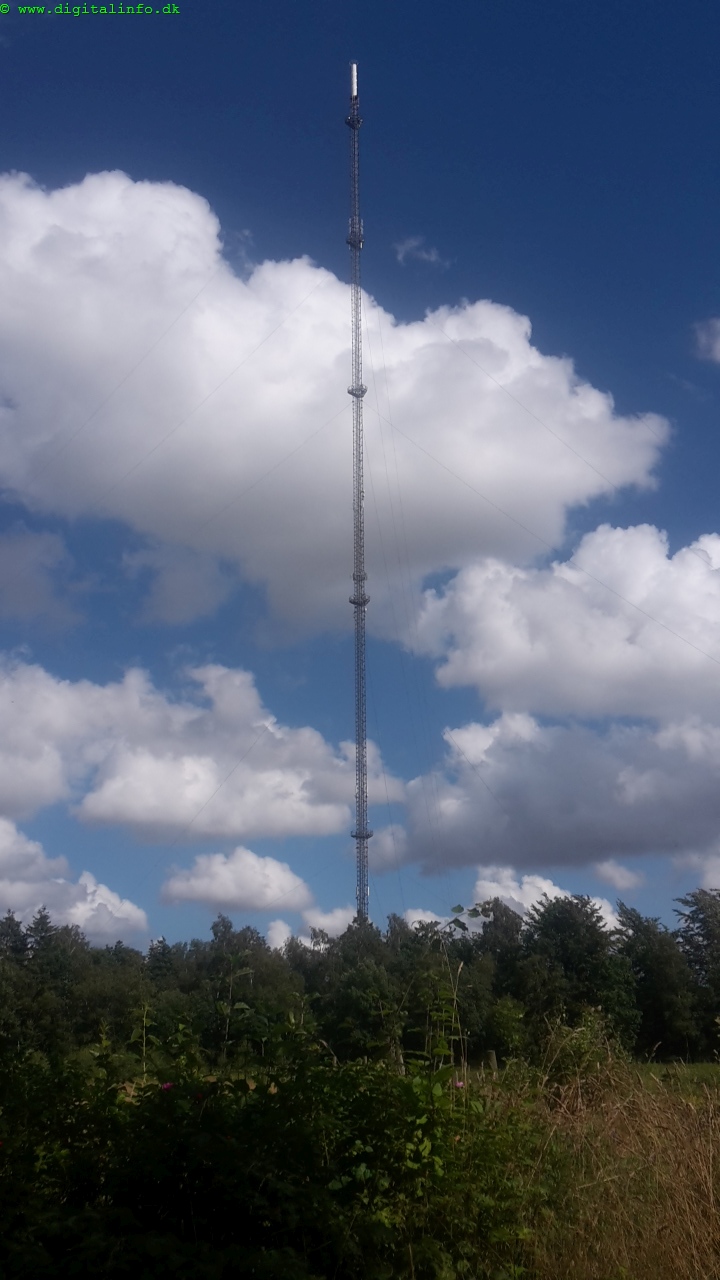

| Rø | K40 626 | K33 570 | K39 618 | K32 562 | K45 666 | 309m - Kote 116 | 25kW Vandret |
 |
|

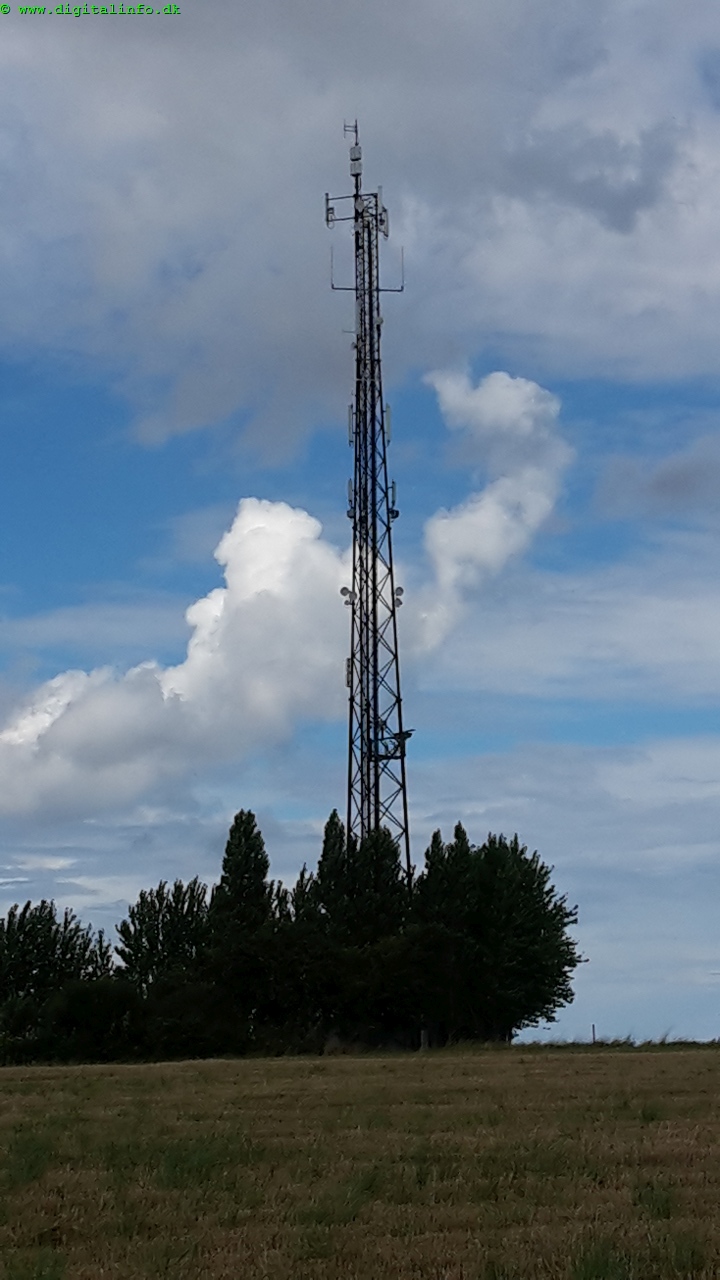

| Nexø | " | " | " | " | " | 52m - Kote 50 | 400W Vandret |
 |
|

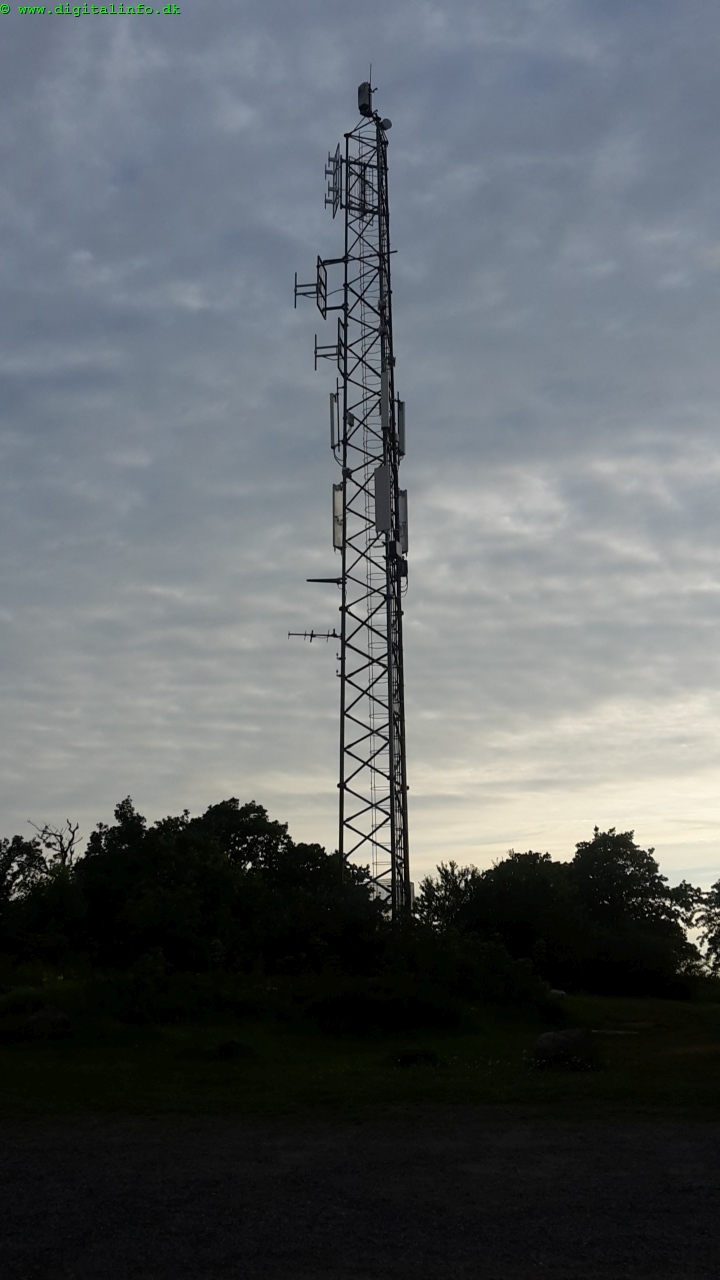

| Hammeren | " | " | " | " | " | 31m - Kote 80 | 100W Lodret |
 |
|

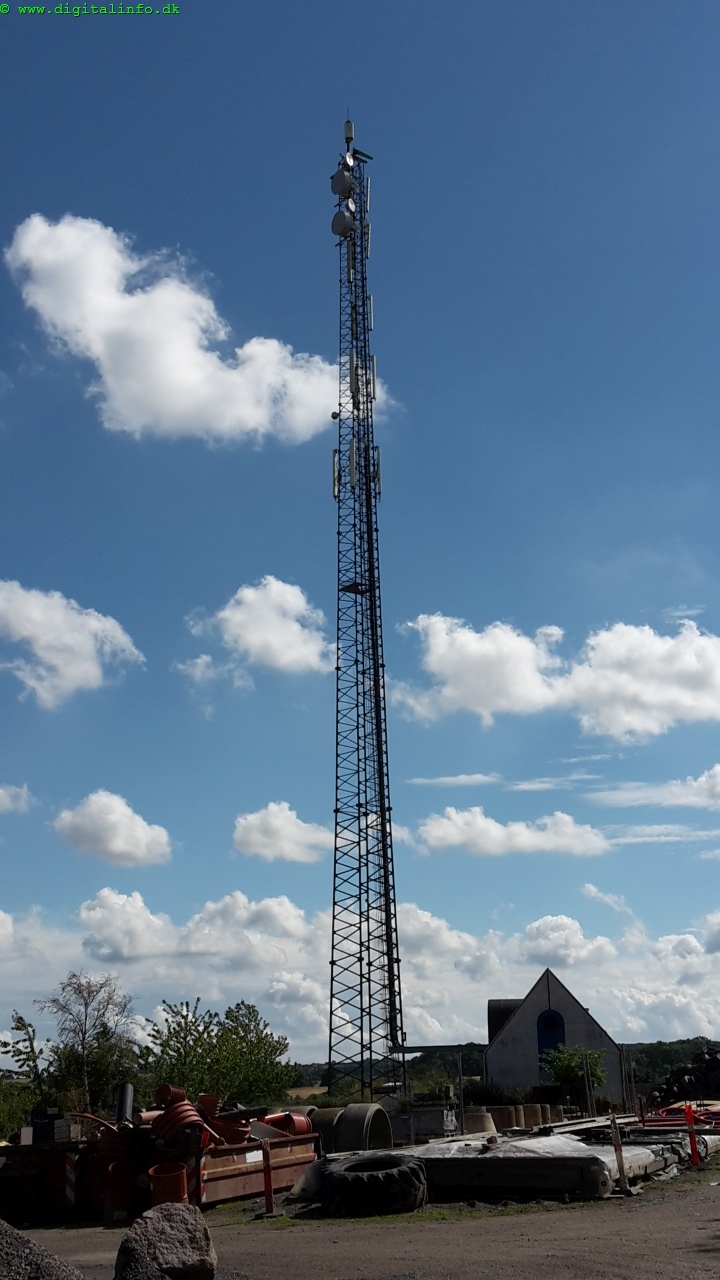

| Gudhjem | " | " | " | " | " | 51m - Kote 43 | 50W Lodret |
 |
Fyn
| Sendemast | MUX1 | MUX2 | MUX3 | MUX4 | MUX5 | Sender info | Sendeeffekt | Lokation - Billede | |

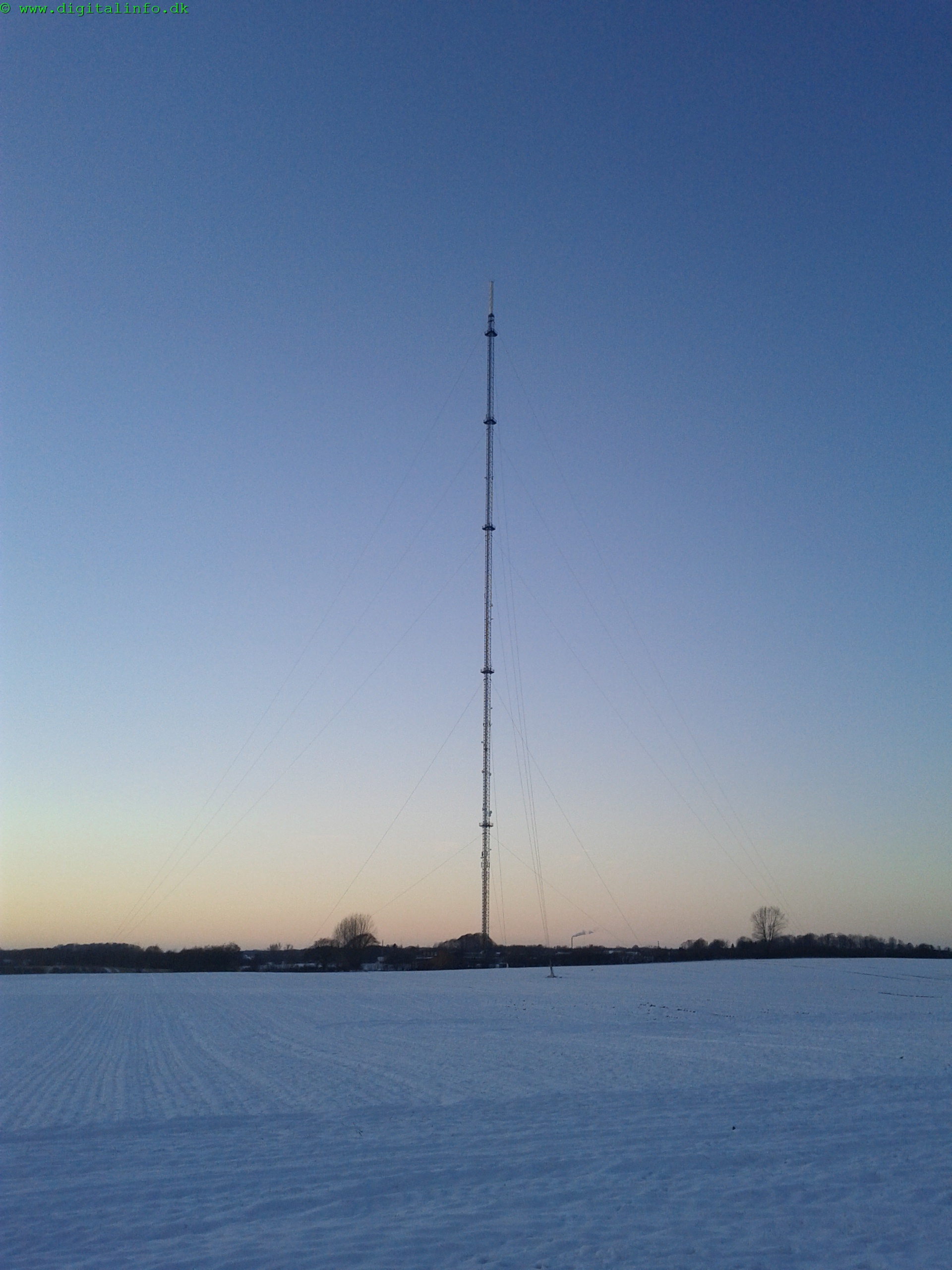

| Tommerup | K35 586 | K37 602 | K22 482 | K25 506 | K30 546 | 311m - Kote 43 | 50kW Vandret |
 |
|

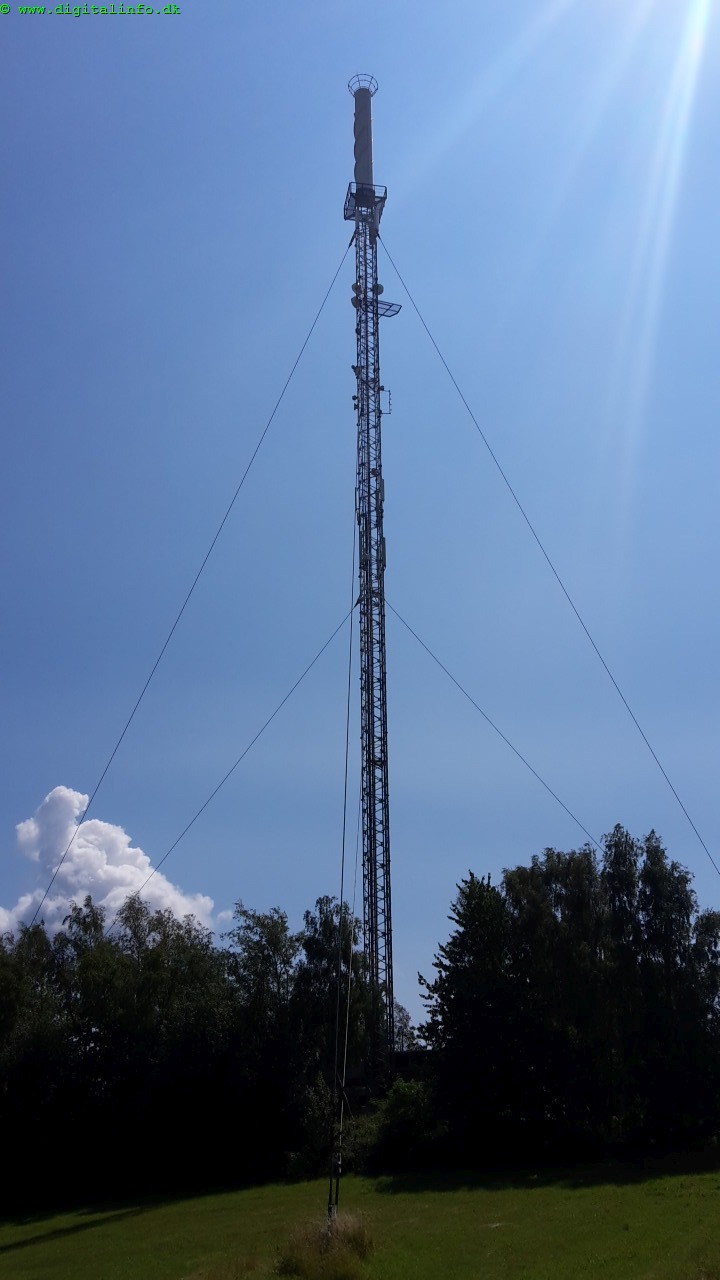

| Svendborg | " | " | " | " | " | 87m - Kote 71 | 25kW Vandret |
 |
Syd/Sønderjylland
| Sendemast | MUX1 | MUX2 | MUX3 | MUX4 | MUX5 | Sender info | Sendeeffekt | Lokation - Billede | |

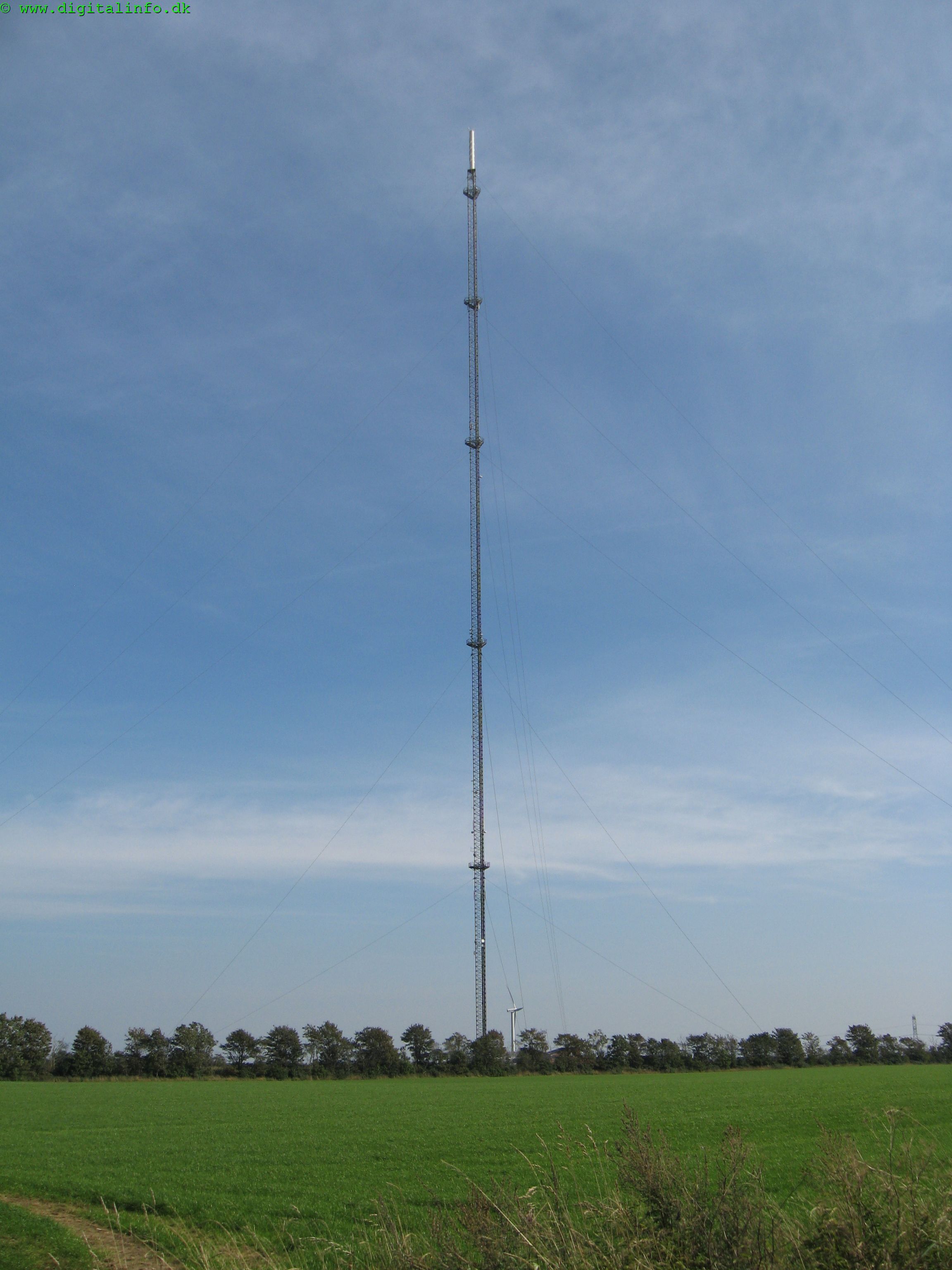

| Åbenrå | K40 626 | K32 562 | K22 482 | K25 506 | K30 546 | 311m - Kote 34 | 50kW Vandret |
 |
|

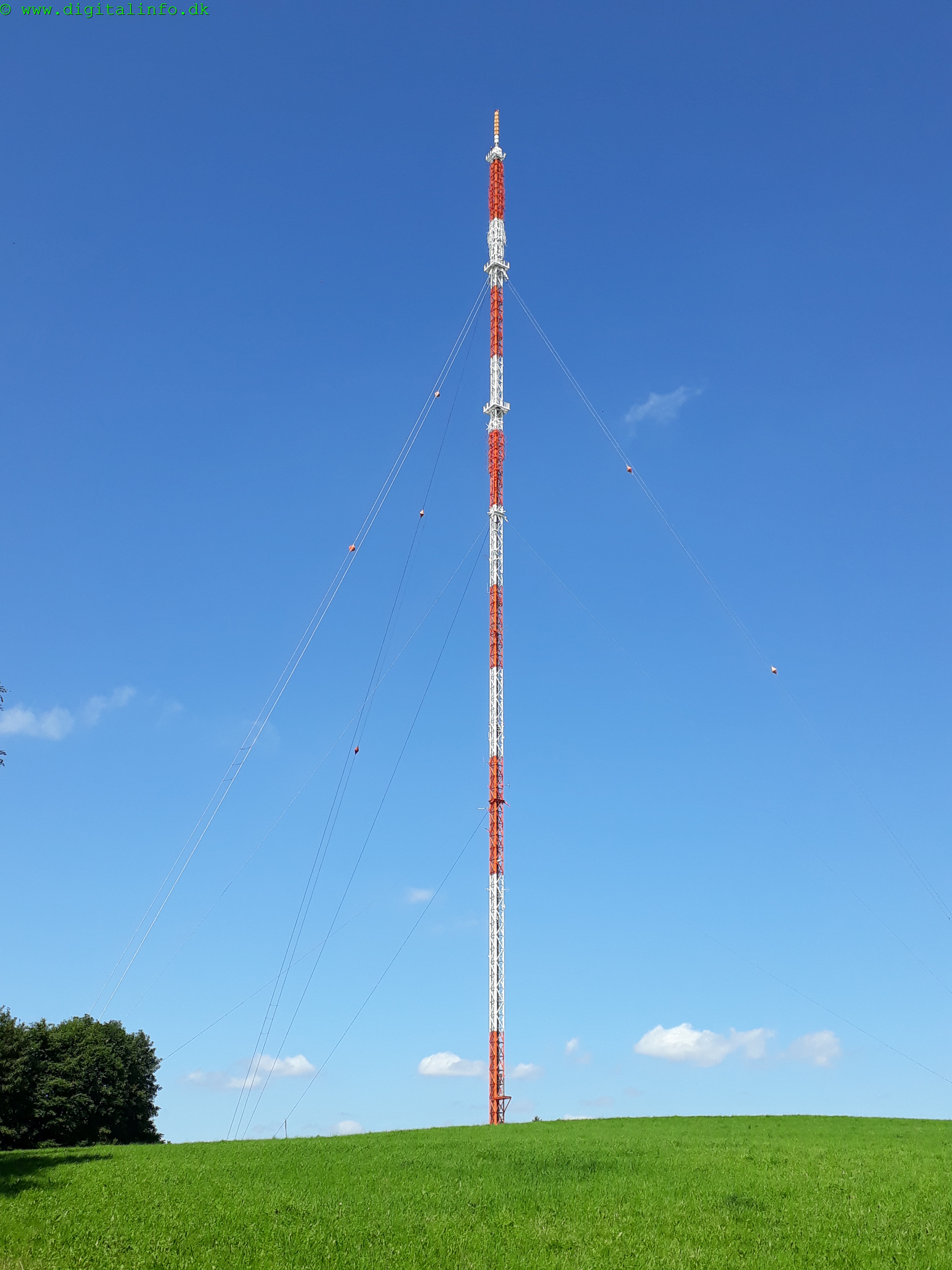

| Flensborg | " | " | " | " | " | 215m - Kote 59 | 100W Vandret |
 |
|

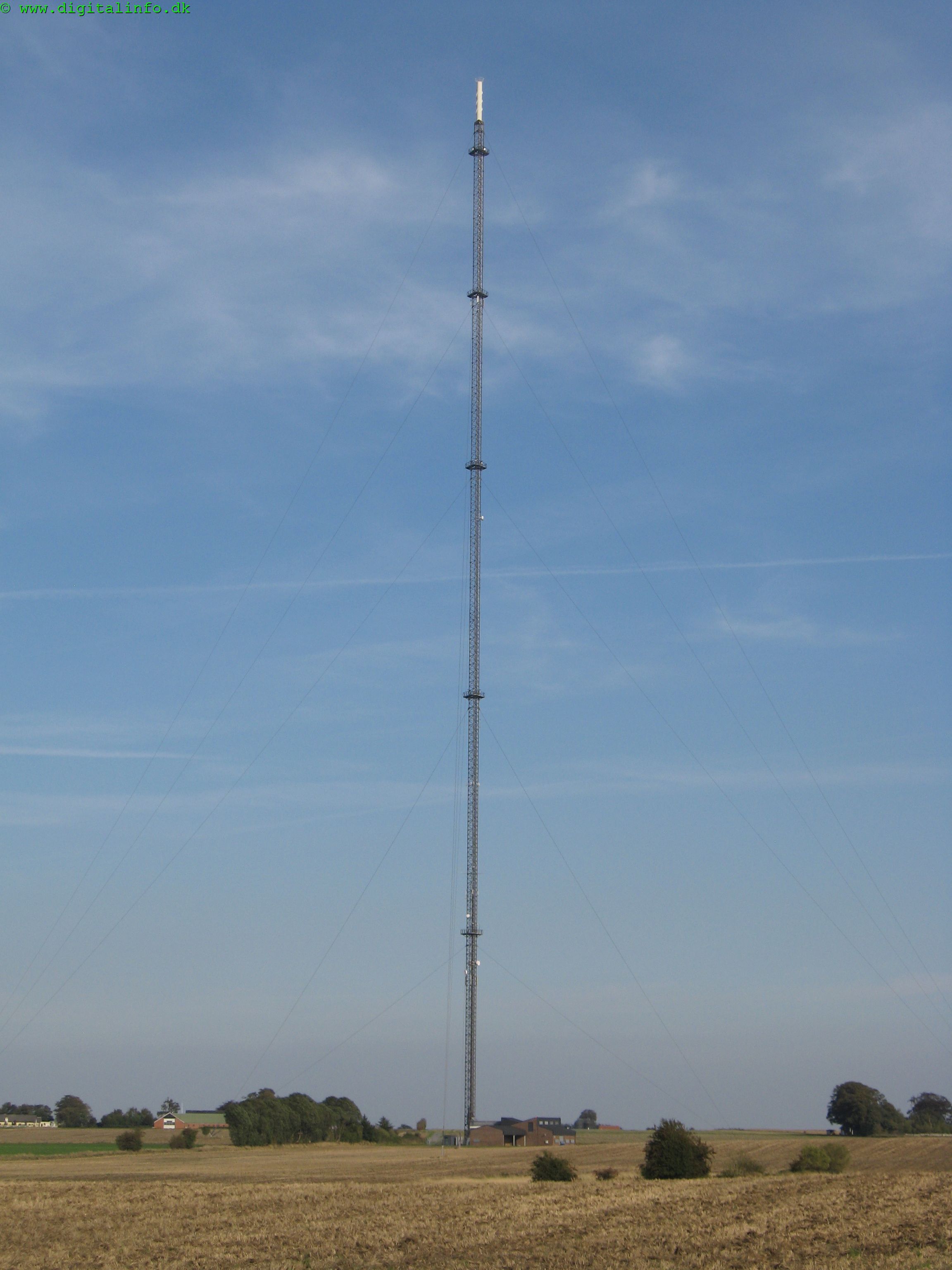

| Hedensted | K41 634 | K43 650 | K36 594 | K46 674 | " | 309m - Kote 72 | 50kW Vandret |
 |
|

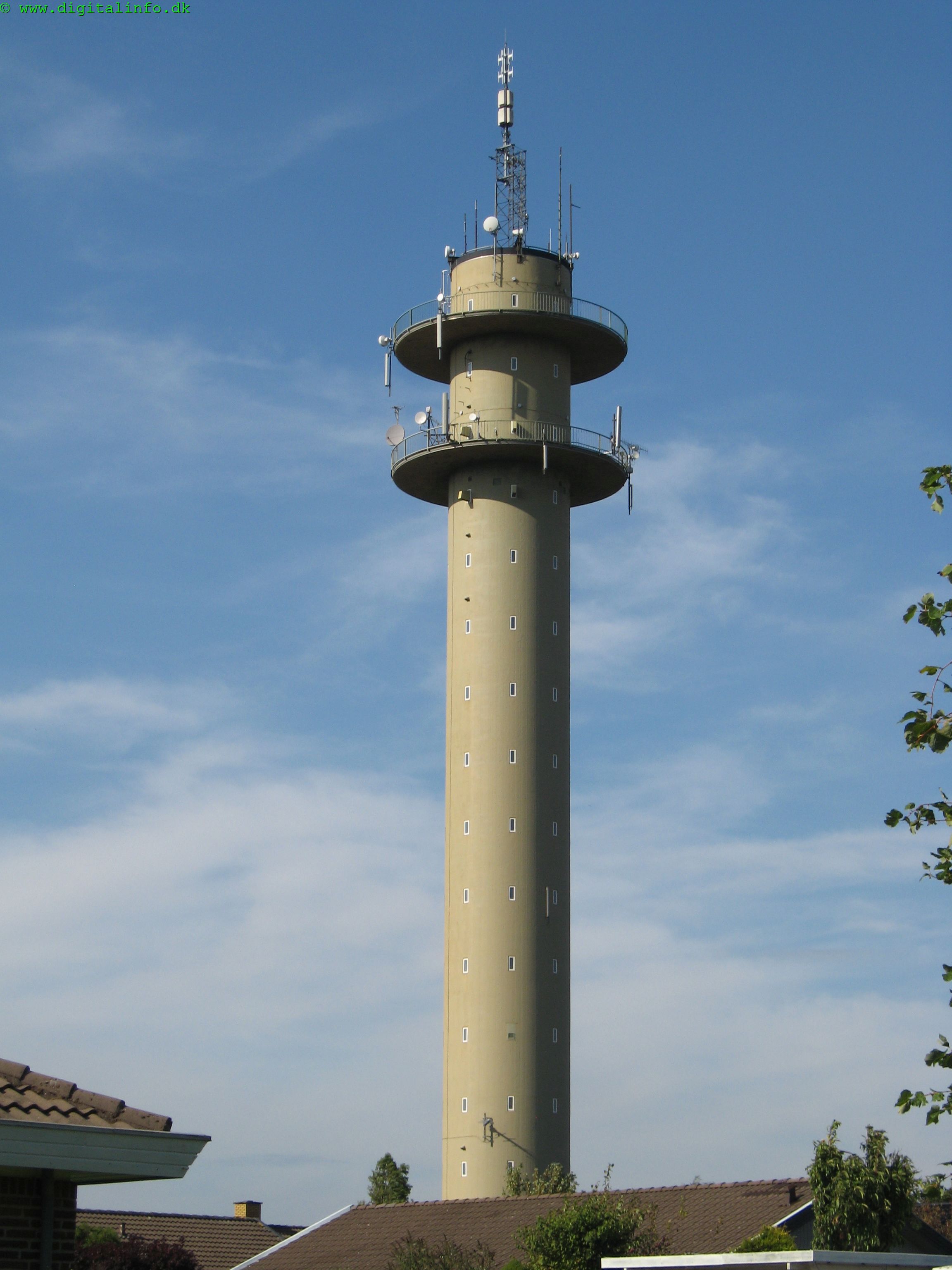

| Kolding | " | " | " | " | " | 71m - Kote 52 | 200W Lodret |
 |
|

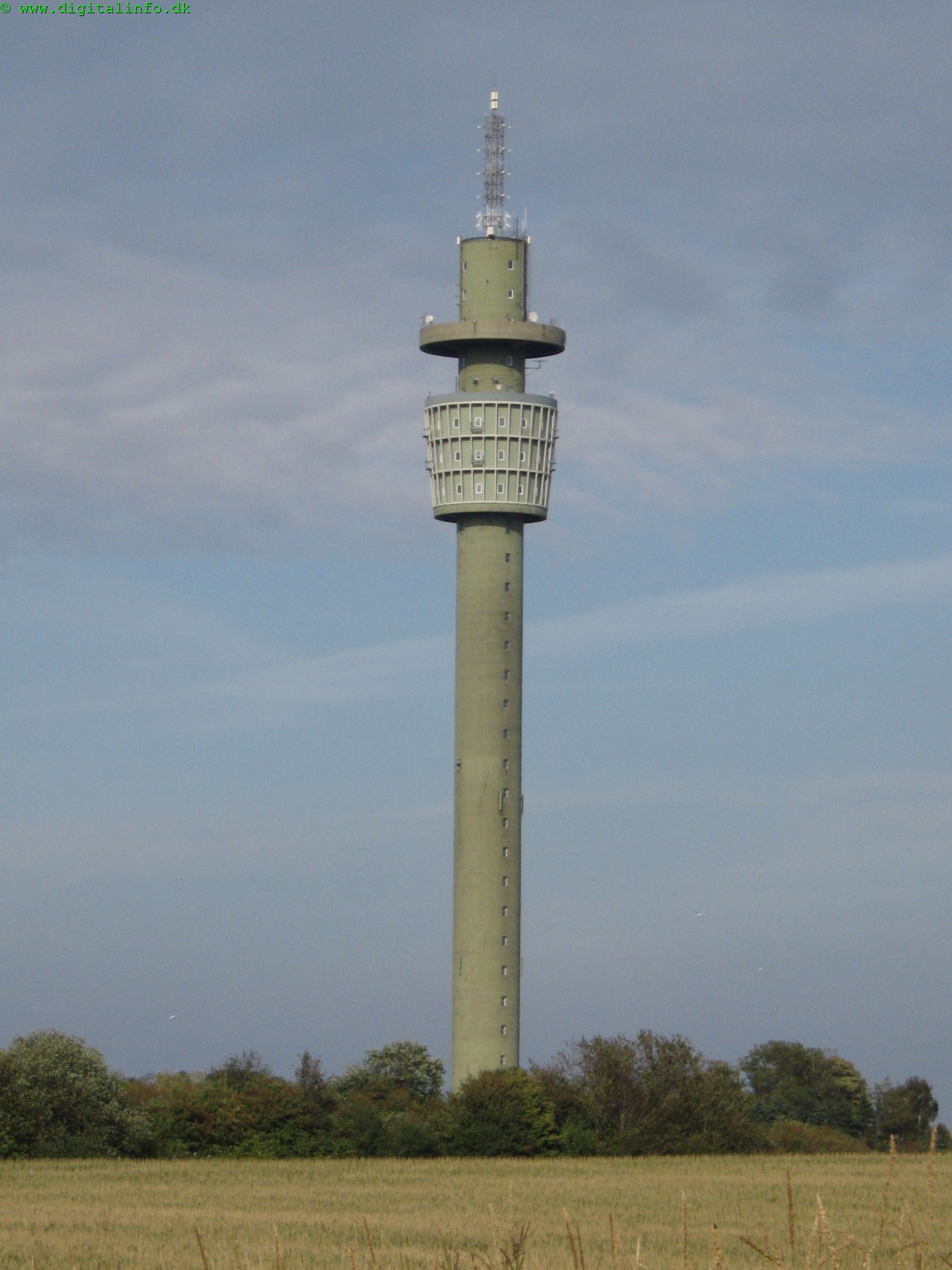

| Vejle | " | " | " | " | " | 135m - Kote 106 | 200W Lodret |
 |
|

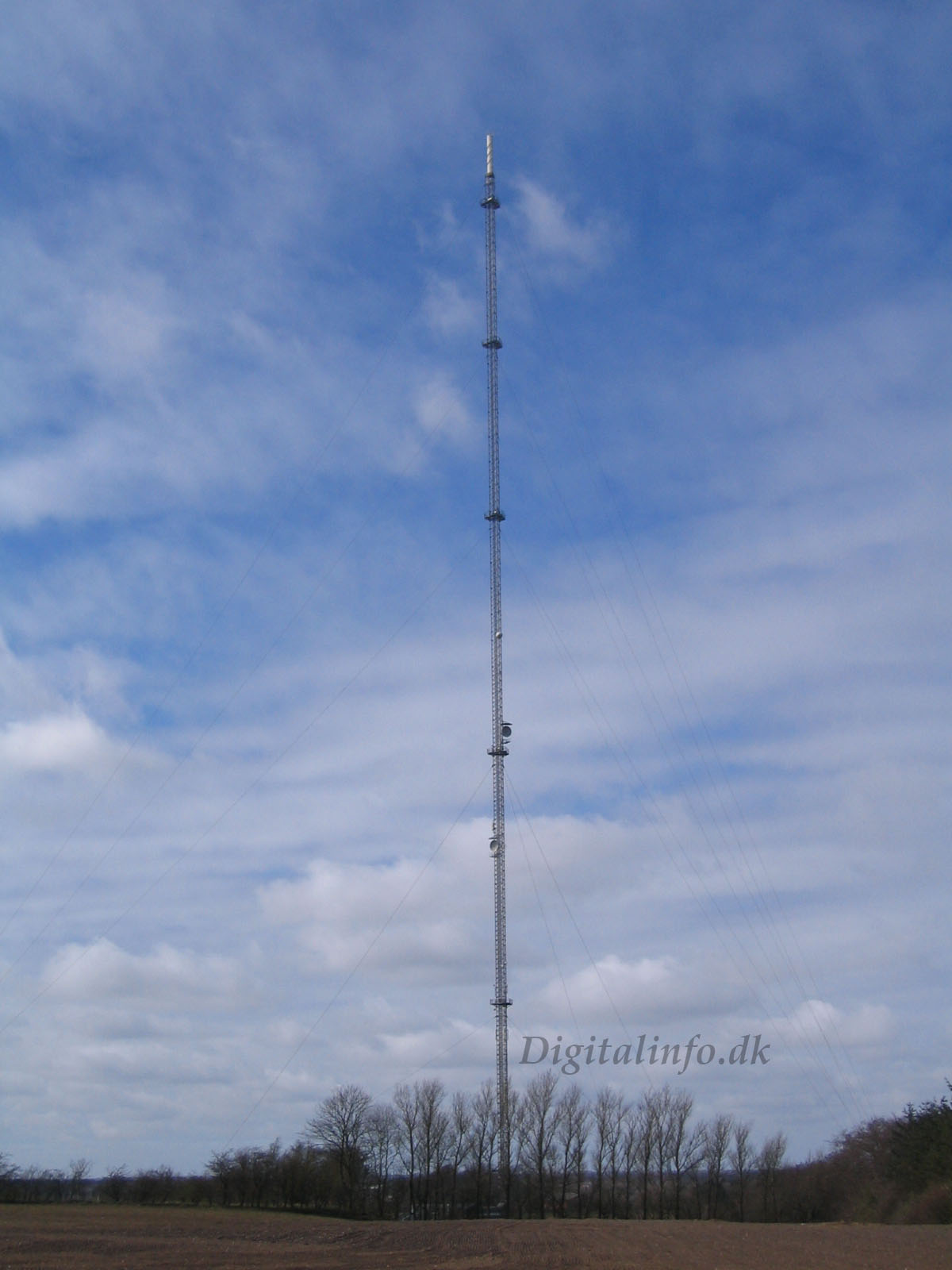

| Varde | " | K32 562 | K33 570 | K34 578 | K23 490 | 309m - Kote 21 | 50kW Vandret |
 |
Midt/Vestjylland
| Sendemast | MUX1 | MUX2 | MUX3 | MUX4 | MUX5 | Sender info | Sendeeffekt | Lokation - Billede | |

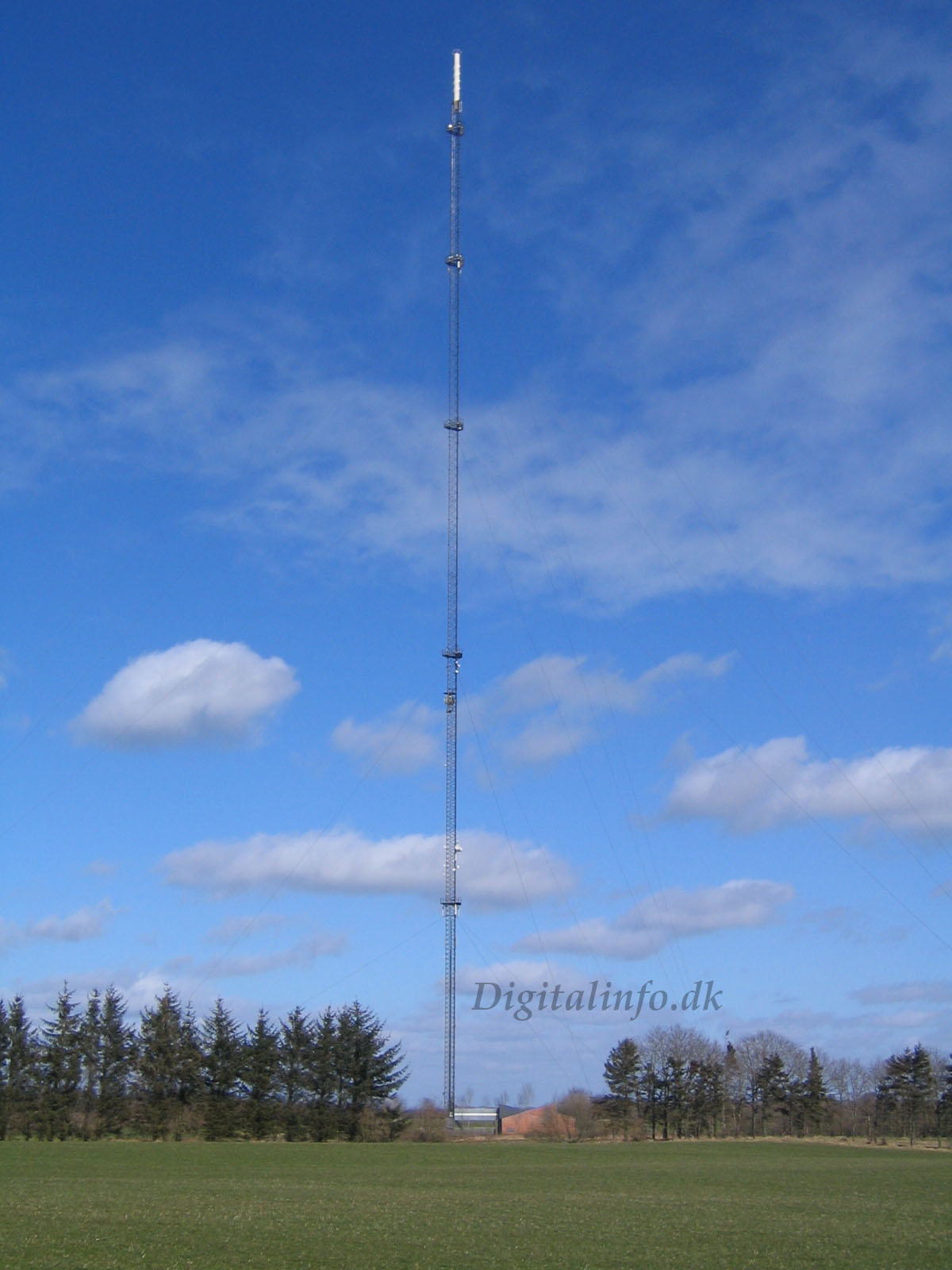

| Videbæk | K48 690 | K47 682 | K42 642 | K34 578 | K23 490 | 311m - Kote 38 | 50kW Vandret |
 |
|

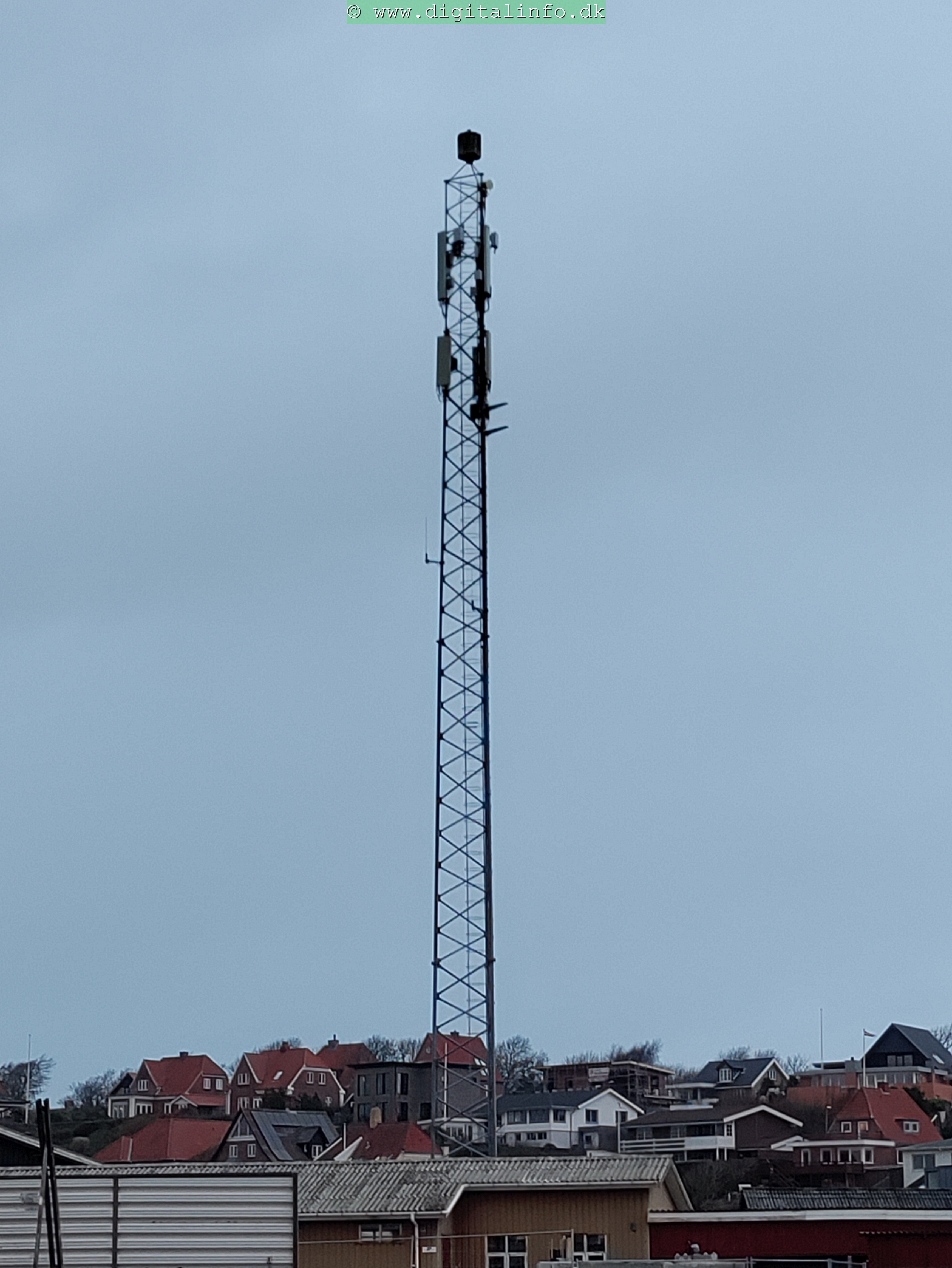

| Lemvig | " | " | " | " | " | 45m - Kote 3 | 50W Lodret |
|
|

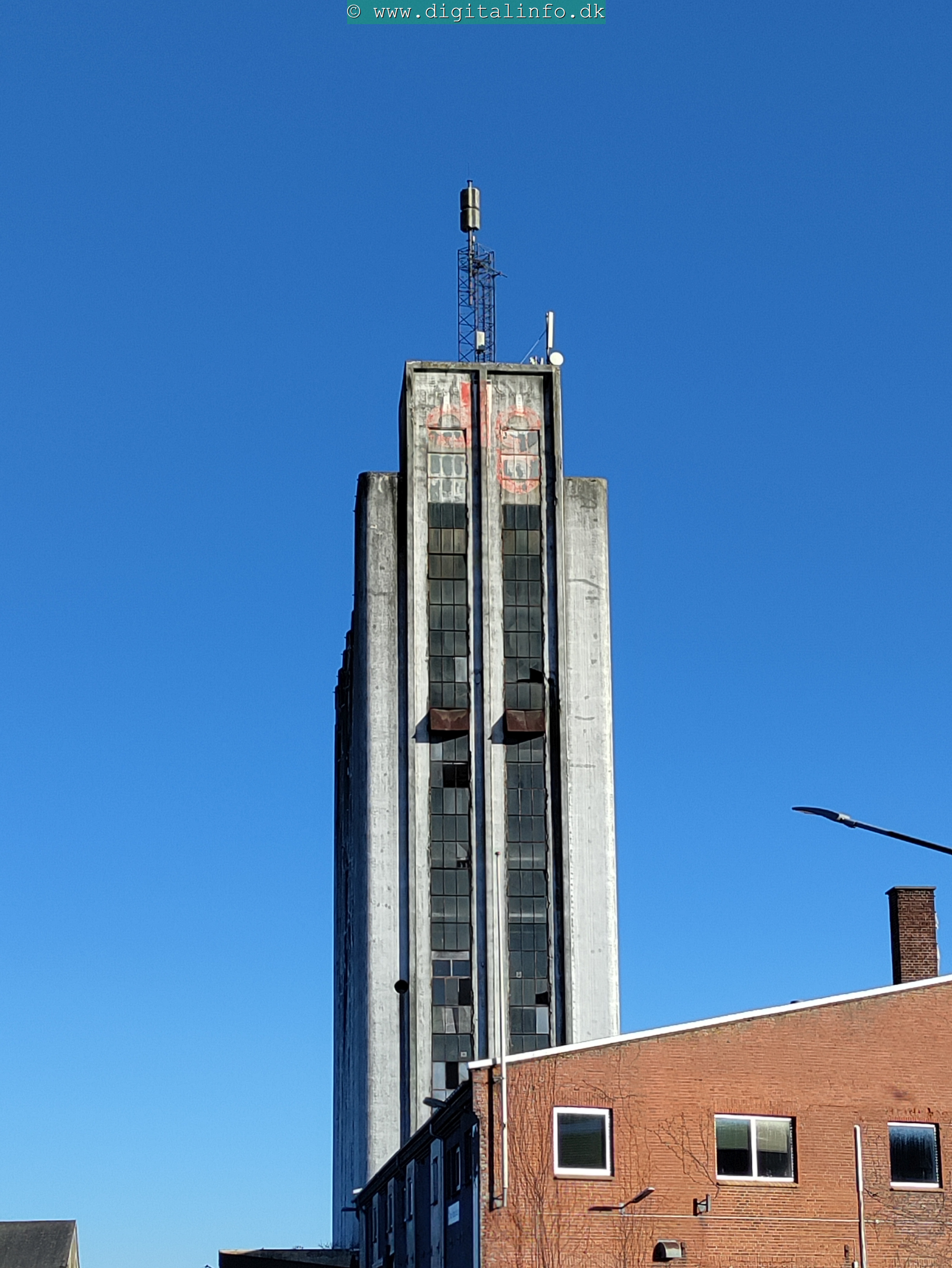

| Struer | " | " | " | " | " | 62m - Kote 2 | 50W Lodret |
|
|

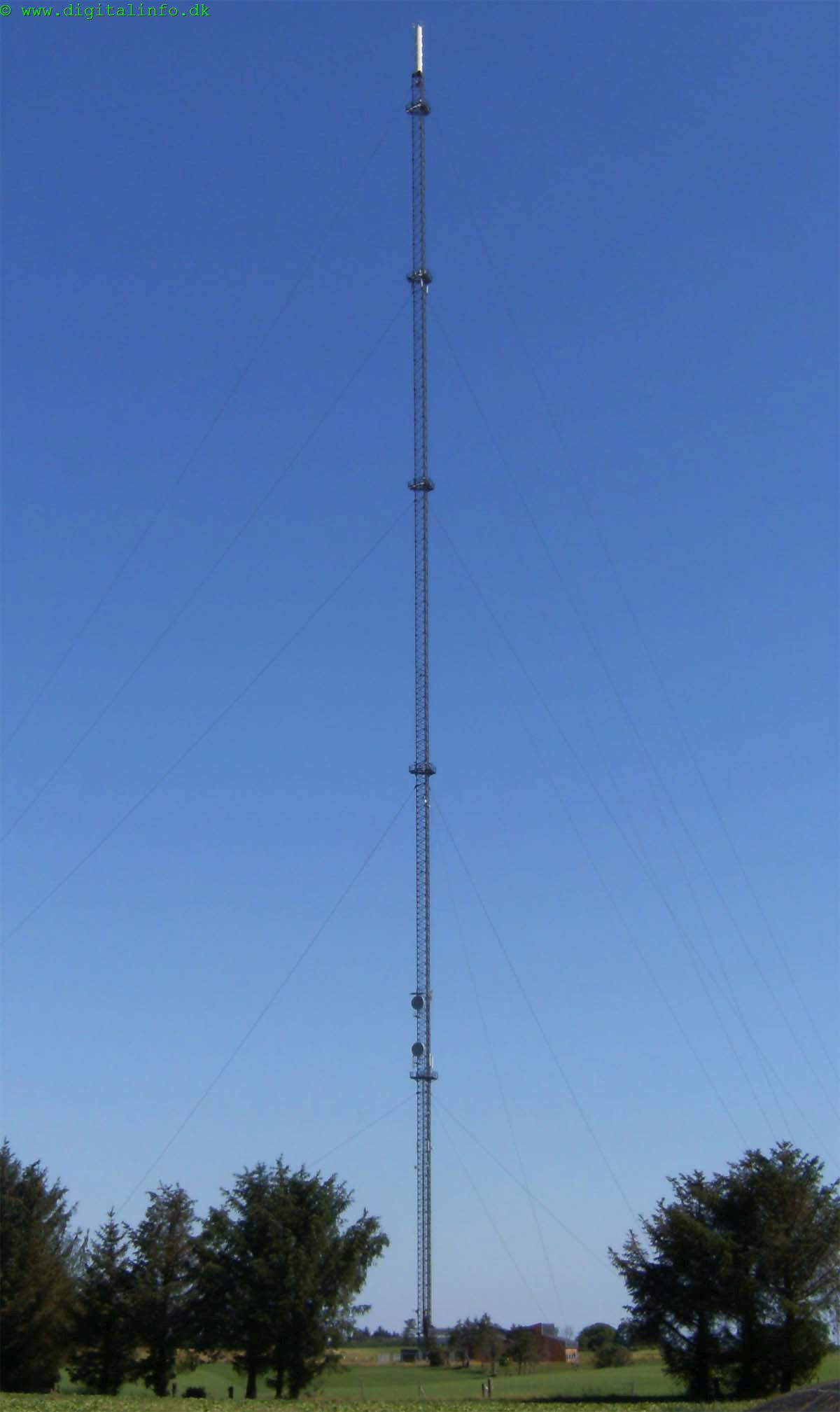

| Viborg | K38 610 | K28 530 | K21 474 | K45 666 | K27 522 | 309m - Kote 46 | 50kW Vandret |
 |
|

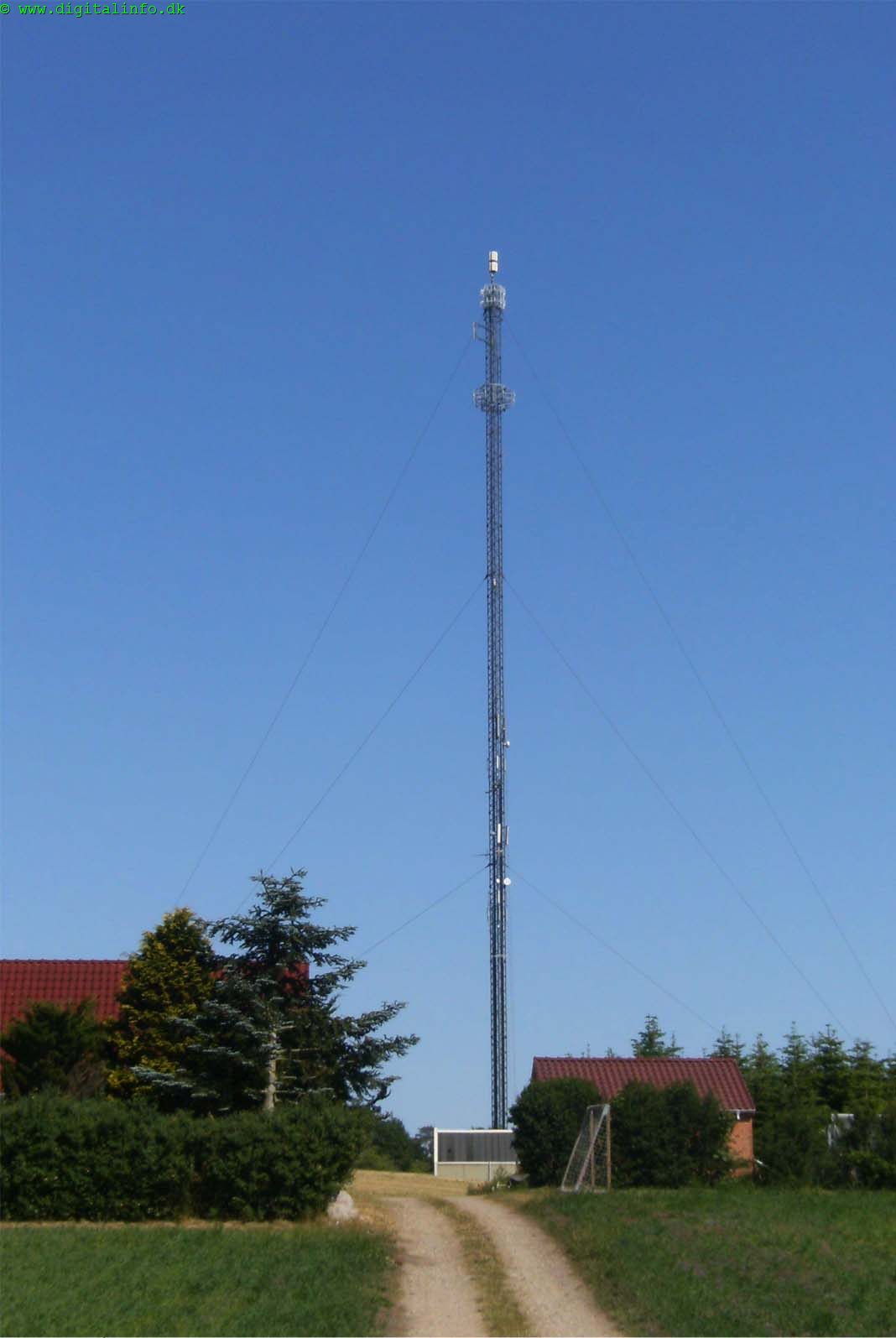

| Viborg By | " | " | " | " | " | 97m - Kote 43 | 50W Lodret |
 |
|
| Skive | " | " | " | " | " | 100m - Kote 1 | 50W Lodret |
|
|
| Thisted | K31 554 | K22 482 | " | " | " | 147m - Kote 30 | 25kW Lodret |
|
Østjylland
| Sendemast | MUX1 | MUX2 | MUX3 | MUX4 | MUX5 | Sender info | Sendeeffekt | Lokation - Billede | |
| Hadsten | K24 498 | K44 658 | K36 594 | K46 674 | K26 514 | 311m - Kote 69 | 50kW Vandret |
|
|
| Århus | " | " | " | " | " | 208m - Kote 104 | 10kW Vandret |
 |
|

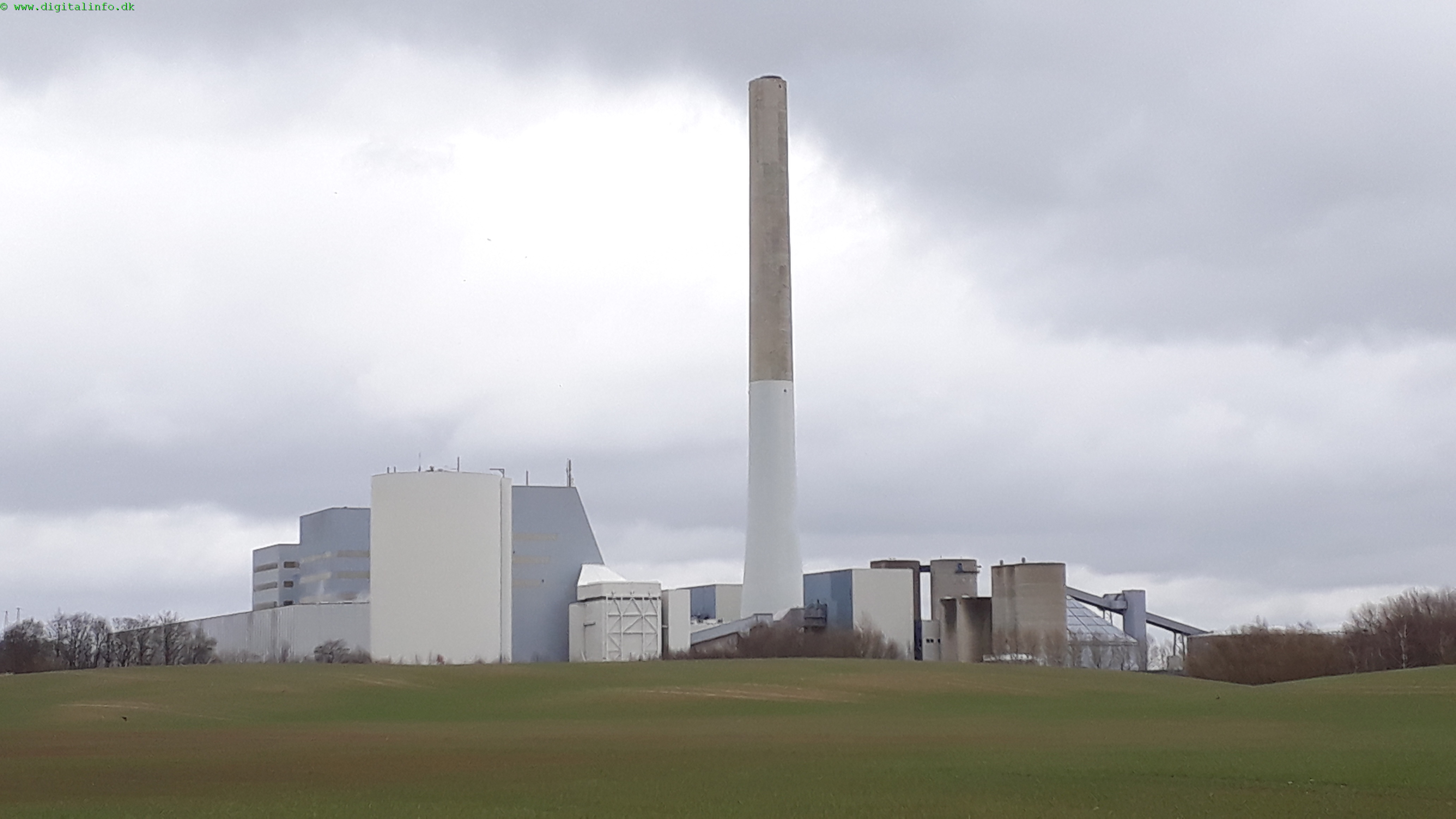

| Studstrup | " | " | " | " | " | 65m - Kote 8 | 200W Lodret |
 |
|

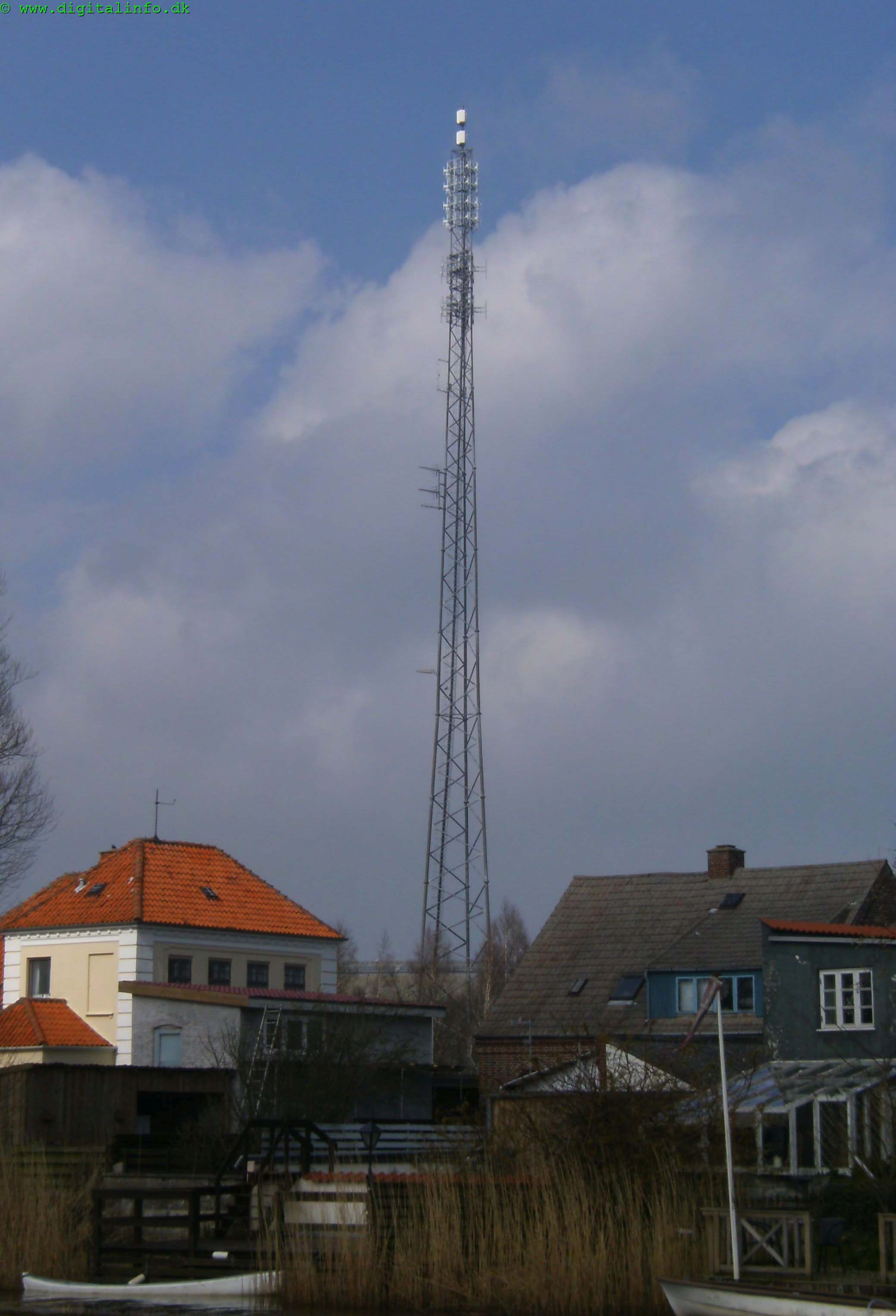

| Grenå | " | " | " | " | " | 73m - Kote 6 | 200W Lodret |
 |
|

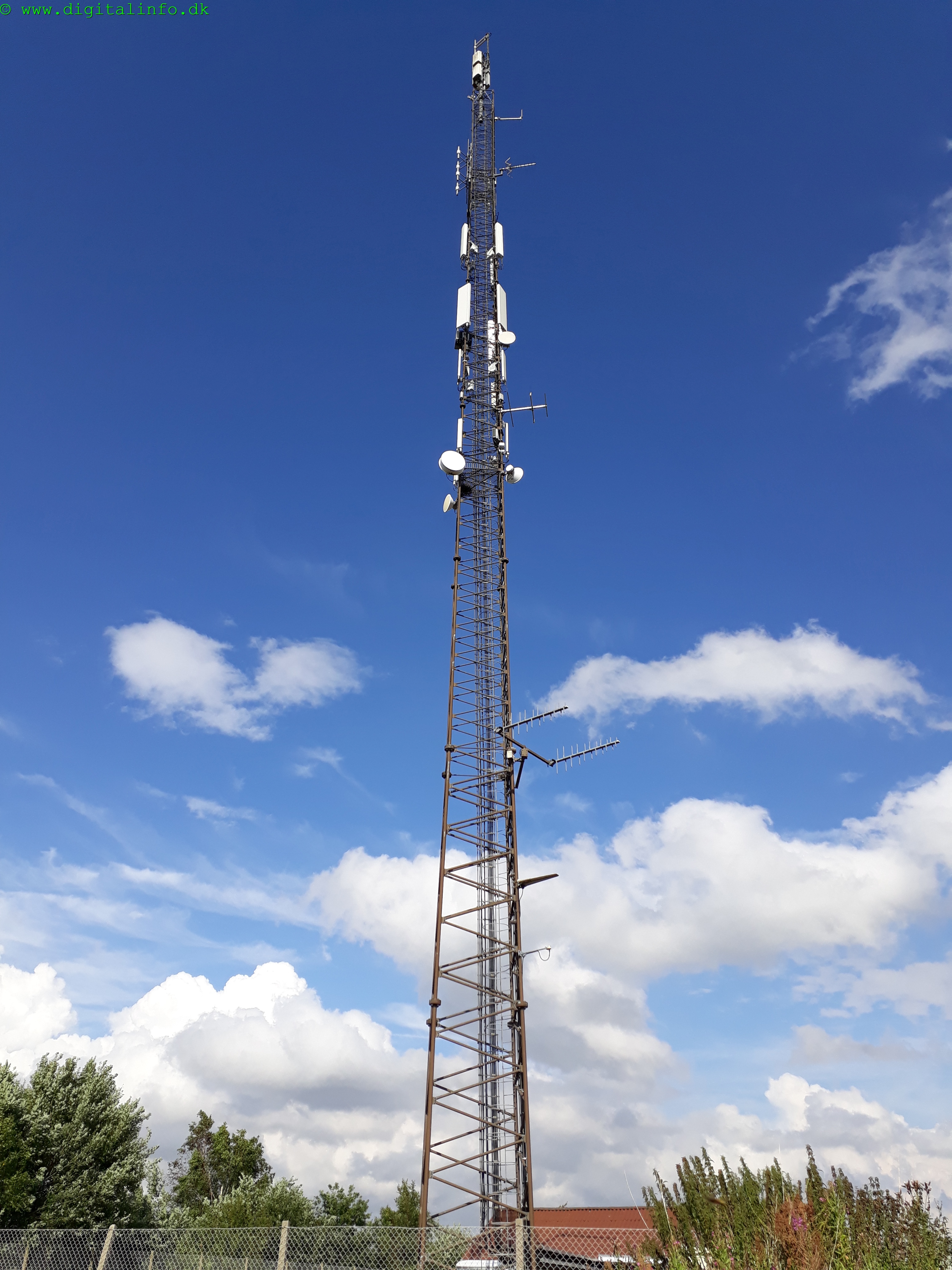

| Randers | " | " | " | " | " | 51m - Kote 50 | 50W Lodret |
 |
|

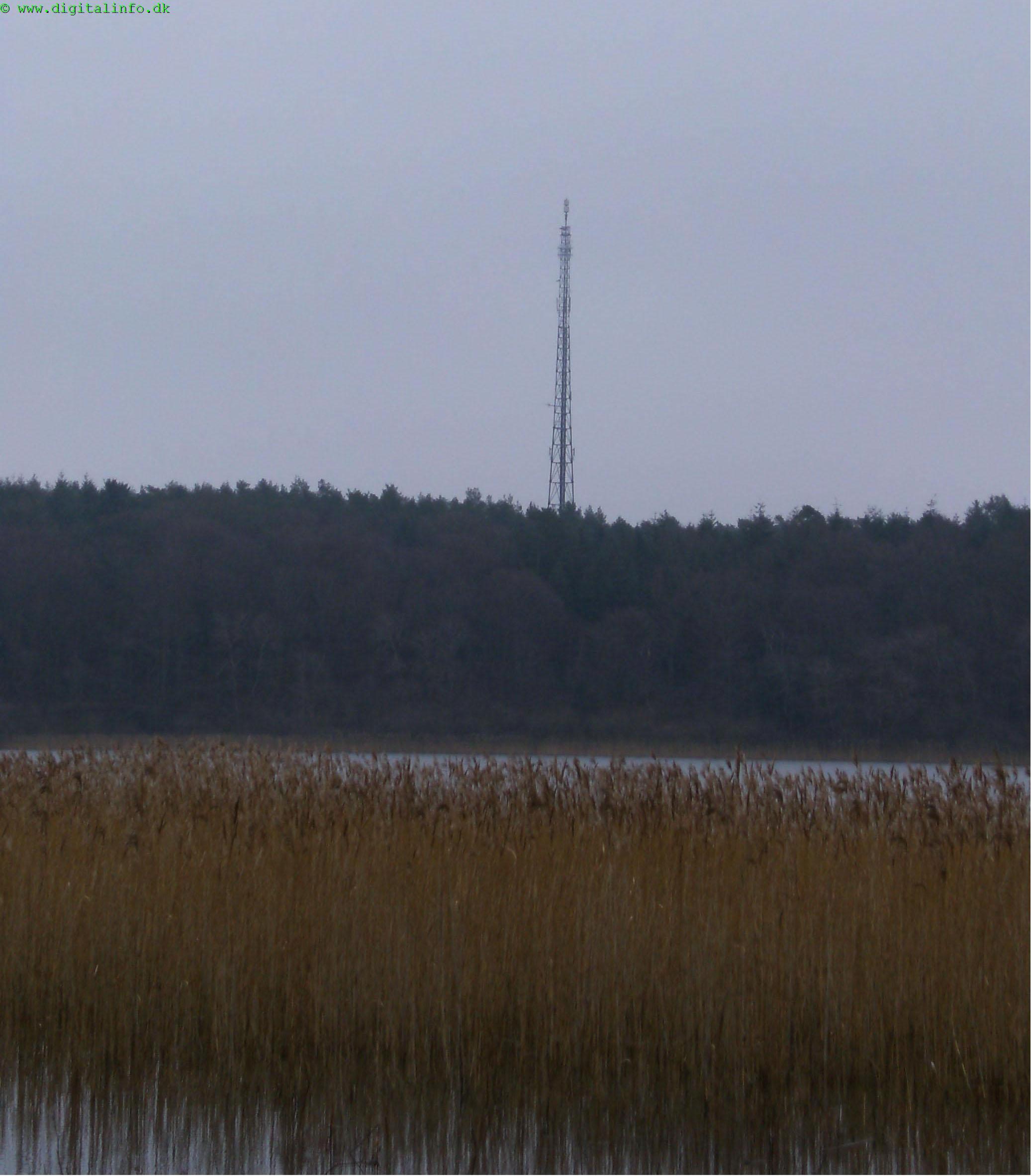

| Silkeborg | " | " | " | " | " | 72m - Kote 41 | 50W Lodret |
 |
|
| Gjerrild | " | " | " | " | " | 51m - Kote 56 | 400W Lodret |
|
|
| Ebeltoft | " | " | " | " | " | 101m - Kote 48 | 178W Lodret |
|
|
| Anholt | K41 634 | K27 522 | K22 482 | K30 546 | K43 650 | 30m - Kote 24 | 250W Lodret |
|
Nordjylland
| Sendemast | MUX1 | MUX2 | MUX3 | MUX4 | MUX5 | Sender info | Sendeeffekt | Lokation - Billede | |

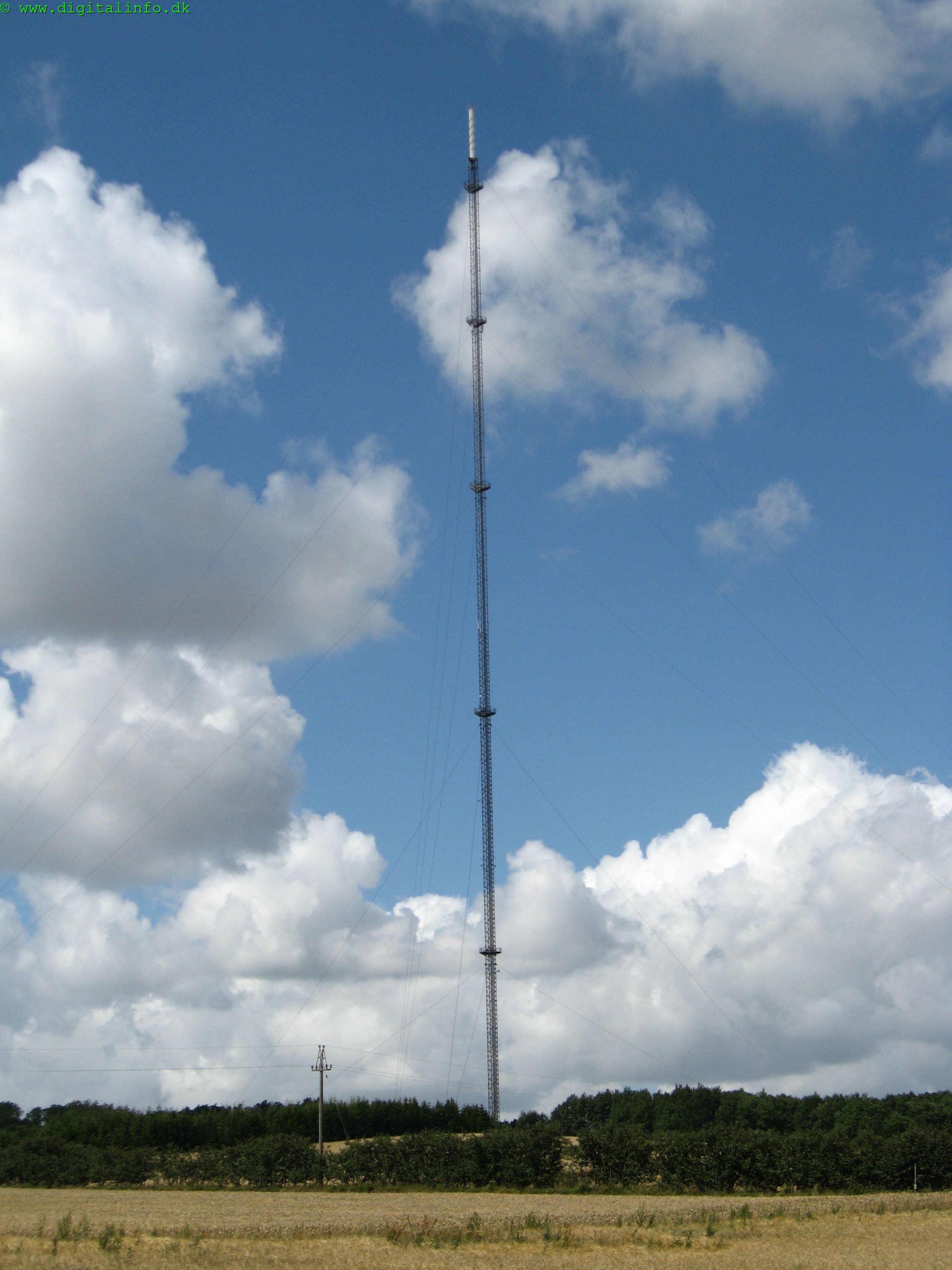

| Nibe | K39 618 | K37 602 | K35 586 | K29 538 | K26 514 | 311m - Kote 52 | 50kW Vandret |
 |
|

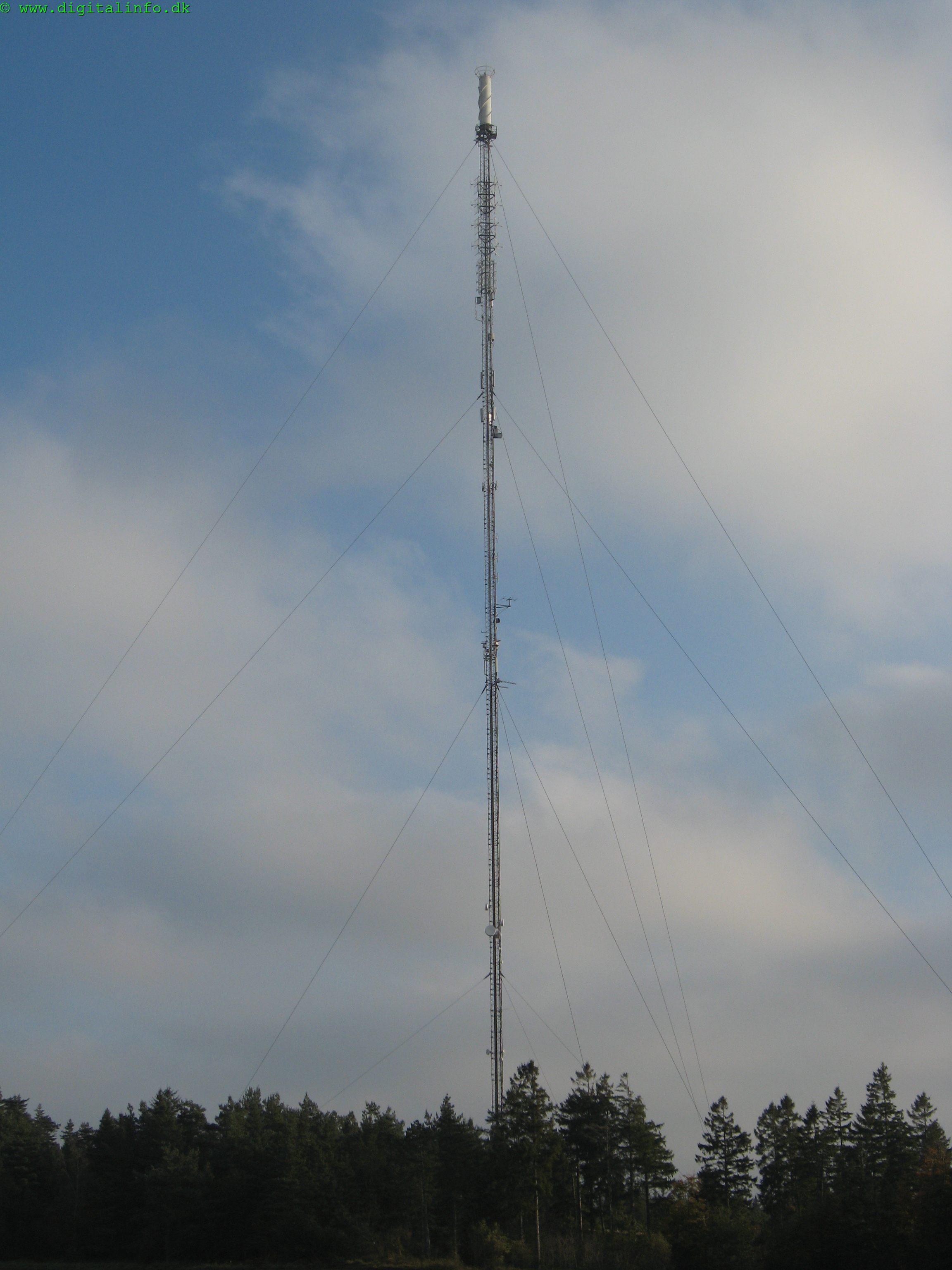

| Tolne | " | " | " | " | " | 155m - Kote 60 | 10kW Vandret |
 |
|
| Hirtshals | " | " | " | " | " | 82m - Kote 30 | 400W Lodret |
|
|

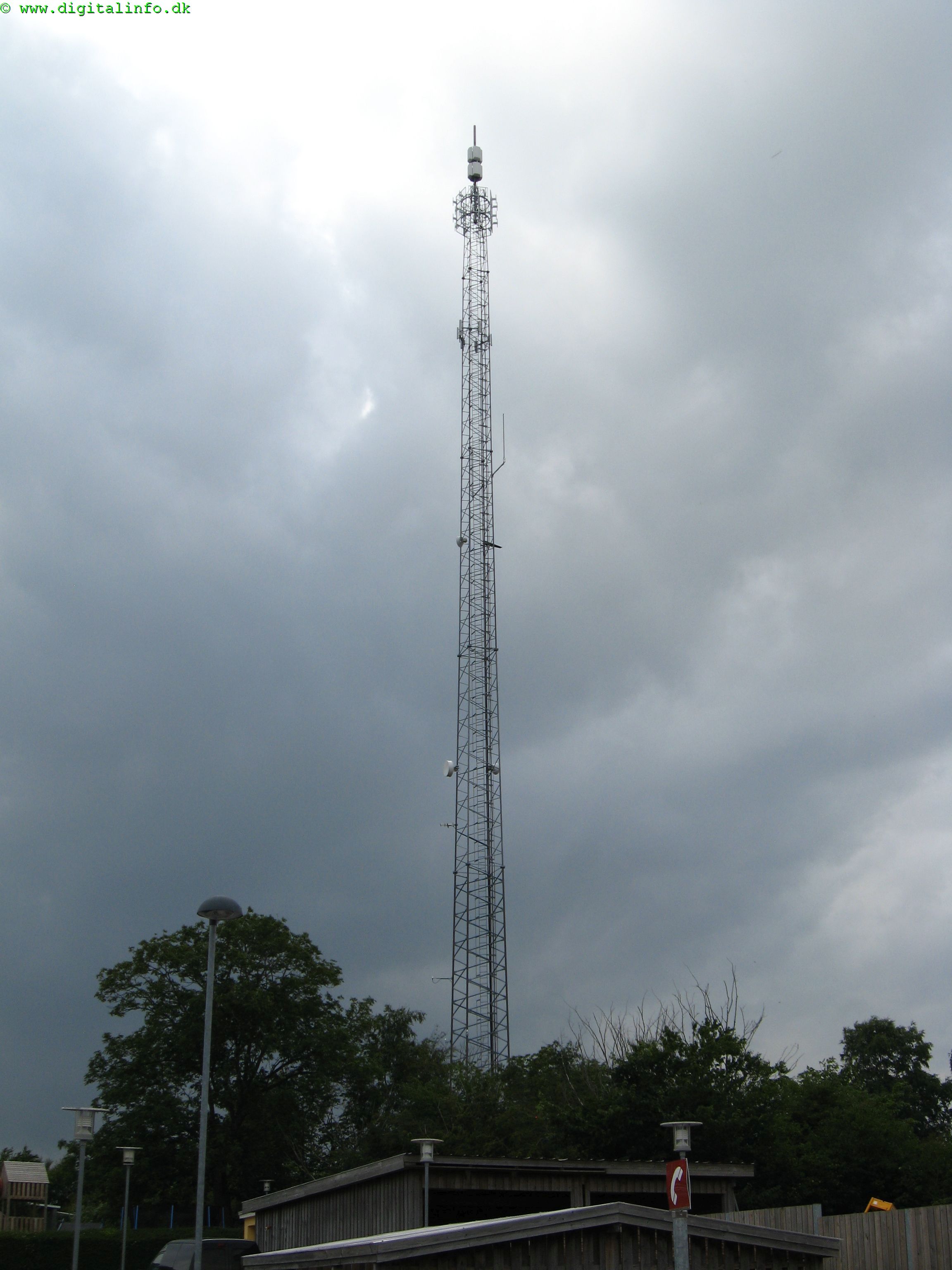

| Sæby | " | " | " | " | " | 60m - Kote 12 | 400W Lodret |
 |
|
| Skagen | " | " | " | " | " | 95m - Kote 5 | 100W Lodret |
|
|

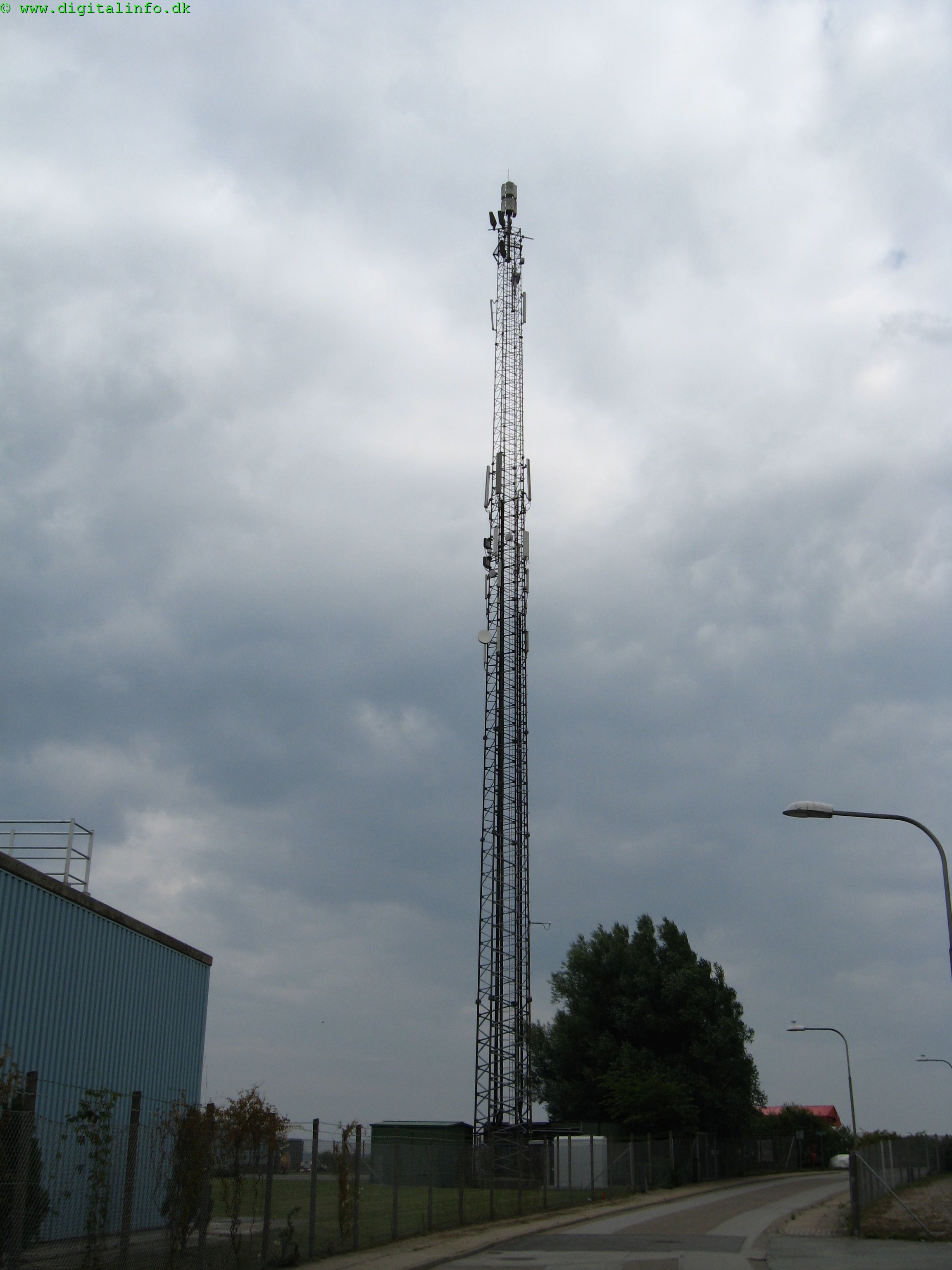

| Frederikshavn | " | " | " | " | " | 52m - Kote 1 | 50W Lodret |
 |
|

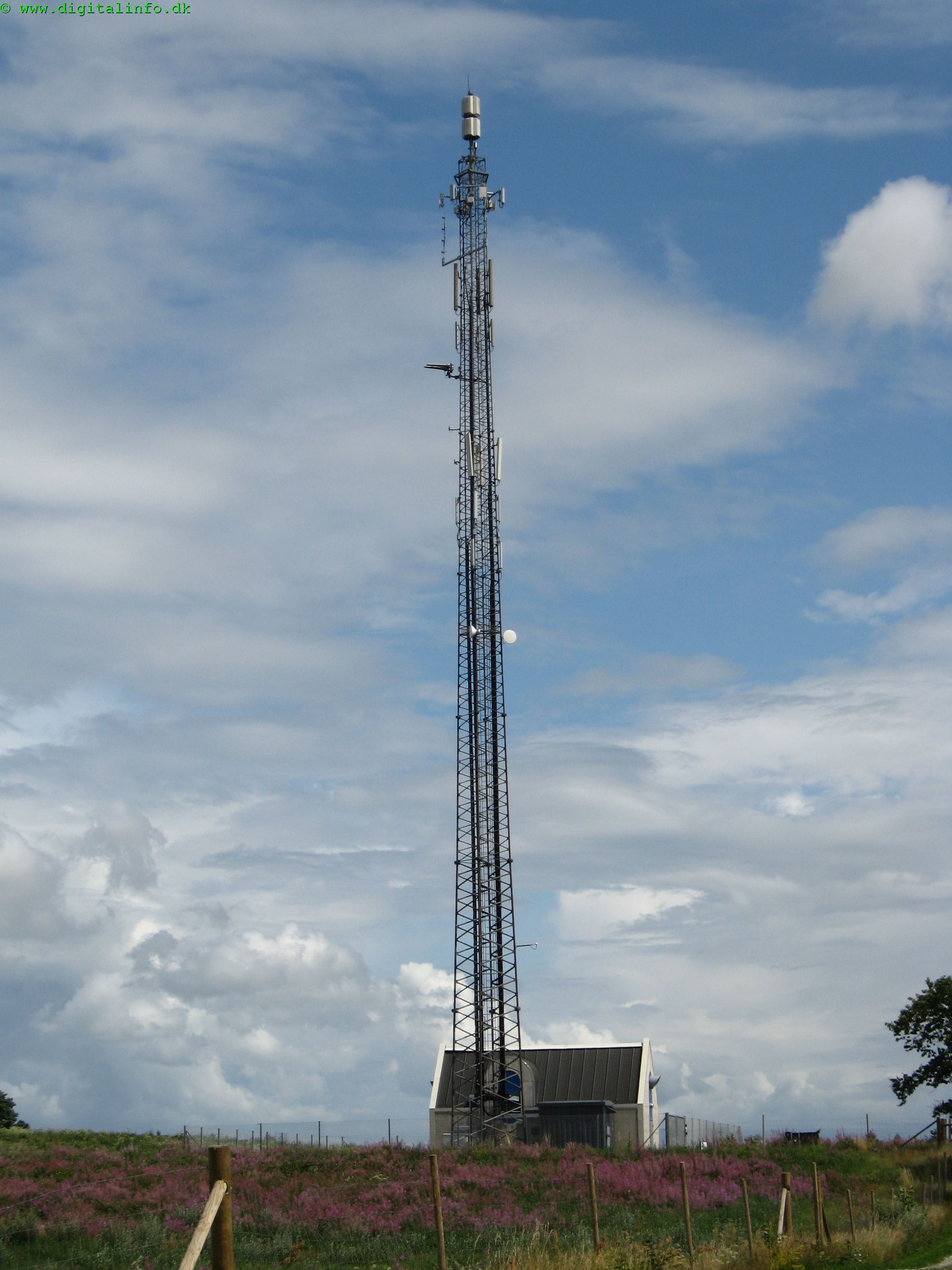

| Hadsund | " | " | " | " | " | 51m - Kote 33 | 50W Lodret |
 |
|

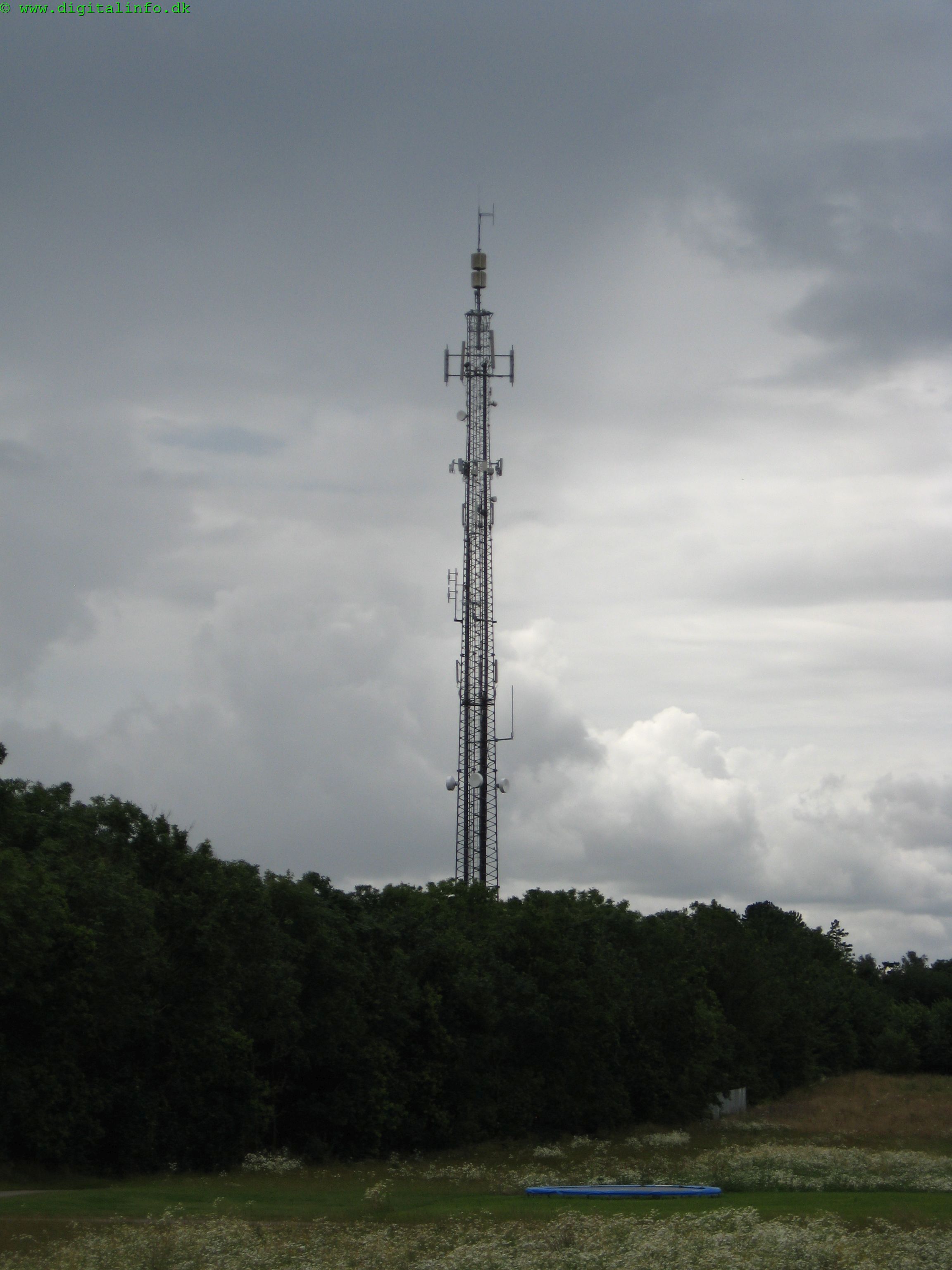

| Hobro | " | " | " | " | " | 51m - Kote 48 | 50W Lodret |
 |
|
| Læsø | K34 578 | K33 570 | K42 642 | K23 490 | K48 690 | 150m - Kote 2 | 200W Lodret |
|
